Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | Pixel Density: | 62,500 Pixels/m² |
|---|---|---|---|
| Module Size: | 320x160mm | Cabinet Size: | 960*960mm |
| Cabinet Resolution: | 240*240 Pixels | Cabinet Material: | Die-casting Aluminum |
| Ingress Protection(front/back): | IP65/IP54 | Brightness: | 5000 Nits |
| High Light: | outdoor led video display board,outdoor full color led screen |
||

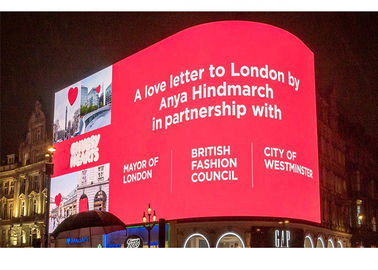

Outdoor LED Billboard Big Screens for Shopping Mall/Airport/Hotel/Office Building Facade (Outdoor Die cast Cabinet.pdf)
Outdoor LED Billboard Features:
1. Wide viewing angle
2. High contrast rate up to 4000:1
3. Front and rear side maintenance
4. High brightness, even within direct sunshine
5. High waterproof and dustproof, IP65 front side and IP54 rear side
6. Having good lightening accordance and no mosaic
7. Having large viewing angle: Getting vivid effect within any position of the viewing range
8. Front service module design, which can help to reduce the cost of maintenance
9. Great uniformity and screen flatness
10. IP65 protection grade, durable nature enables the screen to work in all out door weather conditions
11. High gray display effect, the picture level is distinct
Advertising LED Signage Advantages:
1. Maintenance can be conducted from either front or rear side, easy to maintain from front
2. It can be installed without taking the space for maintenance channel into consideration, thus improving your work efficiency.
3. Long-term Brightness:6500 nit brightness(for outdoor full color) throughout product lifetime of the LED display.
4. It Controlled with PC by synchronization, with high refresh rate; an-synchronization control system is also available.
Digital LED Board Specifications:
| Pixel Pitch | 4mm |
| Pixel Density | 62,500 pixels/m2 |
| LED Type | SMD1921 |
| Cabinet Dimension | mm*768mm |
| Cabinet Resolution | 256*192pixels |
| Cabinet Weight | 35kg |
| Cabinet Material | Die-casting Aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | 5,000nits |
| Viewing Angle(H/V) | 140°/140° |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1920Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 240w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Big LED Display Applications:
This outdoor front service can be widely used in many contexts such as: stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station, schools, telecommunications,entertainment events, business establishments and so on.
How do I install the outdoor led screen as I am new in this industry?
1. About how to install it :
The good thing is, in many countries and regions, there are companies that will do the work for you.
If you don't know much about this industry, we can recommend our partners to help you install your outdoor LED display.
Just hit us up.
2. About how to use and operate :
We will provide online remote technical support, which can teach you how to use the LED display.
If you don't like going that route, we have very clear video tutorials as well that will guide you on how to use and operate your LED display screens.
Third, once you become our customer, you can actually visit our factory and have our guys teach you.
Lastly, if you want to work in this industry for a long time, you can become one of our dealers. We will send our technical staff to your country and train your guys on site every two year.
