Product Details:
Payment & Shipping Terms:
|
| Pitch: | P2.6/P3.2/P5.33/P6.4/P8/P12.8/P16 | Maitenance Service: | Front Access |
|---|---|---|---|
| Cabinet Material: | Aluminum Die-casting | Module Size: | 512*256mm |
| Cabinet Size: | 1024*768mm | Driver IC: | MBI5124 |
| Leds: | SMD2727 | ||
| High Light: | led digital billboard,outdoor led billboard |
||

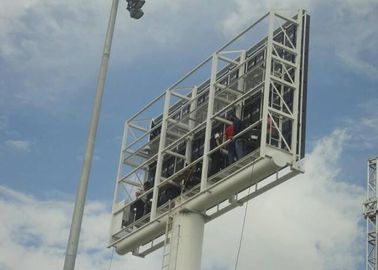

High Brightness Billboard Led Display for Outdoor Ads, Aluminum Cabinet Size of 1024*768
Description:
1. Module and cabinet achieving front&rear maintenance;
2. IP65 super waterproof;
3. Fast and easy dismounting,saving much time and cost;
4. Screen body front maintenance,reducing installing structure material,thinner body,saving installation cost;
5. Fast lock and single cable design for rear cabinet,30s only for dismounting a module;
6. Using integrated design,combine the cables and control system,make the back cabinet more
tidy and artistic;
7.Waterproof ring and removable patent design ensures the high waterproof grade and easy
maintenance;
8. Easy operation on screen body,module,control box and cables,convenience for transportation
Features:
1. Pitch of 2.6mm, 3.2mm, 5.33mm, 6.4mm, 8mm, 10.66mm, 12.8mm, 16mm are available, what’s more they share the same aluminum die-casting cabinet;
2. Solid but light: due to aluminum die-casting design, it’s only 35kg/sqm, while normal iron cabinet is 55kg/sqm, so it save more labor and cost;
3. Excellent heat dissipation, due to aluminum module frame design;
4. Dynamic seamless pictures always avialble;
It’s can be used for rental business and sport events;
Specification
| Pixel pitch | 12.8 mm |
| Pixel density(dots/m2) | 6103 |
| LED encapsulation | SMD 2727 |
| Cabinet weight (Kg) | 27.7 |
| Module size(mm) | 512*256 |
| Cabinet size(mm) | 1024*768 |
| Brightness (cd/㎡) | ≥5500 |
| View angle | 160°(horz.)/ 140° (vert.) |
| Refresh rate | ≥1920 Hz |
| Grey scale | 14~16 bit |
| Operating Temperature(℃) | -20~50 |
| Protection grade | IP65/IP54 |
| Service | Front/Rear |
