Led Module Size: | 320*320mm/320*160mm | Cabinet Size: | 960*960mm |
---|---|---|---|
LED Lamps: | Nationstar, Epistar, Cree, Nichia | Power Supply: | Meanwell |
Driver IC: | MBI5124IC | Cabinet Material: | Die-casting Aluminum |
Maintenance Way: | Fully Front Service | Cabinet Weight: | 35 Kg/panel |
Brightness: | 6,000 Nits | Expected Lifetime: | 100,000 Hrs |
Highlight: | front maintenance led display,outdoor full color led screen |

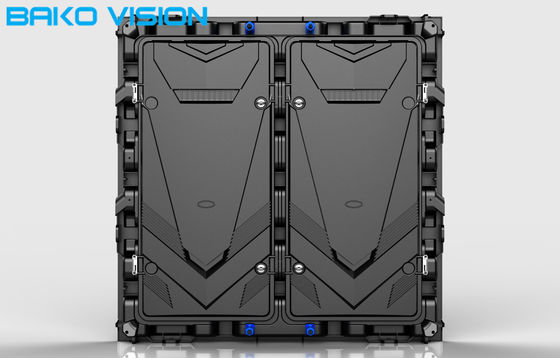

Outdoor P10 LED Screens Front Service Advertising Display Full Color Billboard with Meanwell Power Supply (Outdoor Die cast Cabinet.pdf)
Outdoor LED Screens Descriptions
Advertising LED Billboard Specifications
BOF-10 | |
Physical Pitch | 10 mm |
Pixel Configuration | SMD 3535 |
Pixel Density | 10,000 pixels/m² |
Module Dimensions(W*H)(mm) | 320*320/320*160 |
Panel Dimensions(mm) | 960*960*112 |
Physical Resolution of Module (W*H) | 32*32/32*16 |
Physical Resolution of Panel (W*H) | 96*96 |
Panel Material | Die-casting Aluminum |
Colors | 281 trillion |
Brightness | 6,500 nits |
Weight (kg/panel) | 35 |
Processing | 16 bit |
Refresh Rate | >1920 Hz |
IP Rating | IP65/IP54 |
Viewing Angle | V:160 degree H: 140 degree |
Expected Lifetime | 100,000 Hrs |
Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
Avg./ Max. Power Consumption | 350/700W/ panel |
Servicing | Fully Front |
Digital LED Sign Features
1. Front Service, Fast lock system desigh guarantees a quick and easy installation.
2.intelligent control and player system by cloud technology.
3.Time management and real time monitoring.
Front Service LED Panel Applications
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc.
About Us
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
1. Warranty: 2-5 Years for the whole Led video display screens.
2. Warranty is based on correct storage, installation, using and maintenance.
3. During guarantee period, our company will chose repair or change new parts for customers.
4. Exceed guarantee period, our company will charge cost for material and labor cost.
