| Pixel Pitch: | 3.91mm | Pixel Density: | 65536 Pixels/m2 |
|---|---|---|---|
| Module Size: | 250*250mm | Cabinet Size: | 500*500/500*1000mm |
| High Light: | 65536 Pixels / M2 LED Panel Display,P3.91 Stage Led Display |
||
P3.91 High Refresh Rate LED Video Wall 500X500MM Die-casting alunLED Panel Display Screen
Key Feature
• Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
• Ultra slim and lightweight
• Rental Slim aluminum structure
• Seamless splicing
• Quick lock system, easy installation
• High refresh rate and high contrast
• Wide viewing angle
• Light Weight and easy to operate
• Working status indicator available
Specification
| Model | BIR-II-3 |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536 pixels/m2 |
| LED Type | SMD3528 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500*500mm |
| Cabinet Resolution | 168*168pixels |
| Cabinet Weight | 7kg |
| Cabinet Material | aluminum |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/28 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 200w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity (operating/storage) |
10%~90%RH /10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0002 |

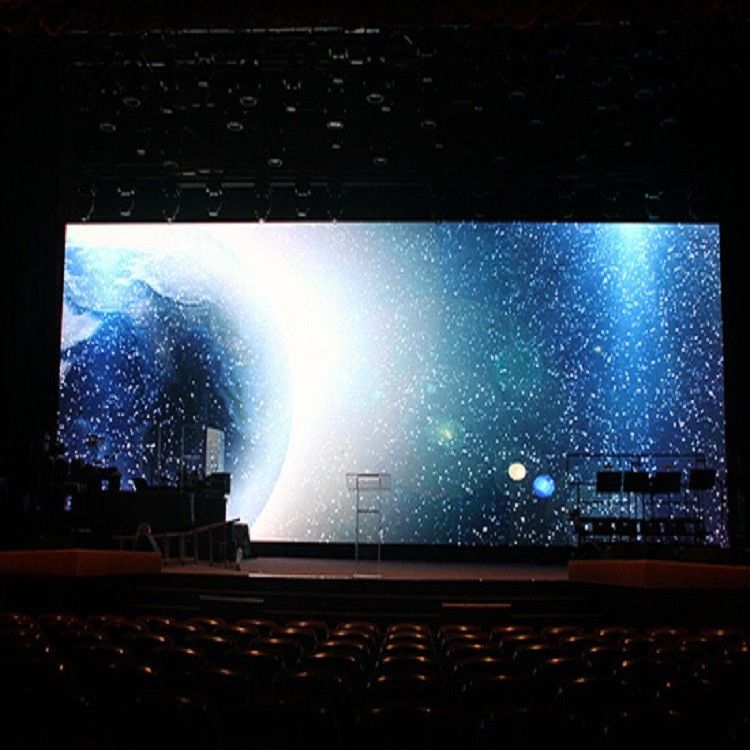

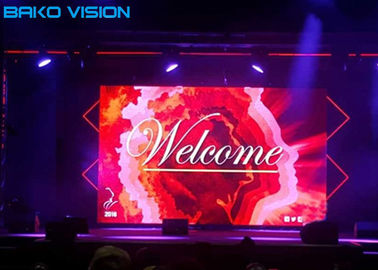

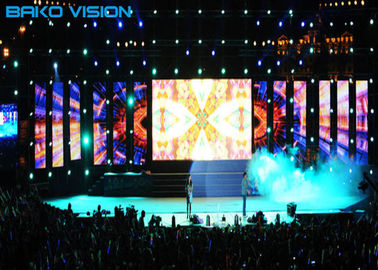

Application
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
