Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising

Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising
Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising

Large Image :  Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CCC,CE,FCC,ETL
Model Number: BG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Packaging Details: Plywood case / Flight Case
Delivery Time: 15~20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000sqm/ Month
Detailed Product Description
Refresh Rate: 1920 Hz Material: Aluminum
Brightness: 1000 ~ 5500 Bits Maintenance: Rear
Gray Scale: 16 Bit Application: Fashion Store, Jewerly Shop, Car Show
High Light:

clear led screen

,

transparent glass led display



Transparent LED Screens 80% Transparency Store Glass or Window Advertising



Transform your windows or glass facades into a dynamic video advertising screen



Description:



1. From 60% to 80% transparency rate, See through led screen, glass led display with high transparency rate.



2. Per square meter <14kg weight, it easy to handle and transparent led screen installation.transparent led wall.



3. The key to a quality LED display is variable brightness for indoor or outdoor transparent led display.



4. Wireless data Transmission screen +date Cloud +App , WiFi Connection



5. Any Size Screen combination flexible,no complicated installation,easy and convenient



6. Deliver awesome picture quality Across the entire screen,even from Wide viewing angles



Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising 0



Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising 1





Parameters:





  BG-2.5-7.8 BG-5-8 BG-10
Physical Pitch 2.5x7.8mm 5x8mm 10mm
Pixel Configuration SMD1921 SMD1921 SMD1921
Pixel Density 50688pixels/m² 25000pixels/m² 9216pixels/m²
Module Dimensions (WxH)(mm) 500x125 480x320 500x125
Panel Dimensions (WxH)(mm) 1000x500 960x640 1000x500
NO. of Modules Per Panel(WxH) 2x4 2x2 2x4
Physical Resolution of Module(WxH) 200x16 96x40 48x12
Physical Resolution of Panel(WxH) 400x64 192x80 96x48
Panel Material Aluminum Aluminum Aluminum
Single Cabinet Weight <14kg/m² <14kg/m² <14kg/m²
Gray Scale 16bit 16bit 16bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 2000 : 1 2000 : 1 2000 : 1
Average Power Consumption 240W/m² 203W/m² 140W/m²
Max. Power Consumption 700W/m² 670W/m² 400W/m²
Operating Temp/Humidity -10ºC-60ºC/ 10%-60% -10ºC-60ºC/ 10%-60% -10ºC-60ºC/ 10%-60%
Storage Temp/Humidity -30ºC-60ºC/ 10%-60% -30ºC-60ºC/ 10%-60% -30ºC-60ºC/ 10%-60%
Refresh Rate >1920Hz >1920Hz >1920Hz
Brightness 1000~4200 nits >5500 nits 1000~4200 nits
Horizontal Viewing Angle 160° 160° 160°
Vertical Viewing Angle 140° 140° 140°
Expected Lifetime 100,000Hrs 100,000Hrs 100,000Hrs
IP Rating(Front/Rear) IP30 IP30 IP30
Servicing Rear Rear Rear
Scan Method 1/11 Scan 1/6 Scan 1/2 or 1/4 Scan

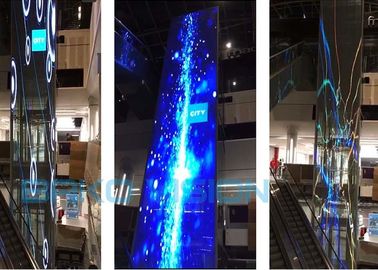

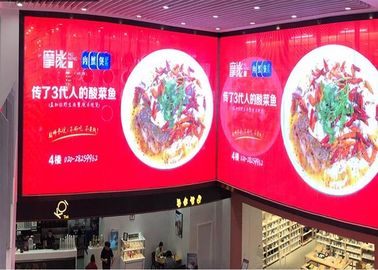

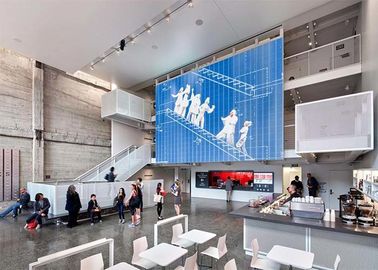

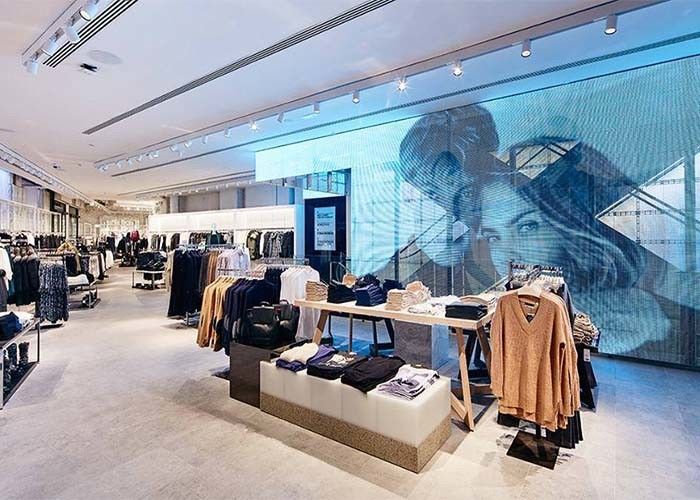

Projects Reference:



Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising 2





Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.



Aluminum Transparent LED Screens 80% Transparency Glass / Window Advertising 3

FAQ:



Q1. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q3. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q5: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
