9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display

9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display
9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display 9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display 9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display 9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display 9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display

Large Image :  9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display

Product Details:

Place of Origin: China
Brand Name: BAKO VISION
Certification: CE, FCC,RoHS
Model Number: BS

Payment & Shipping Terms:

Minimum Order Quantity: 1m²
Packaging Details: Plywooden case
Delivery Time: 20~25 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Weight: 8.2 Kg/m² Contrast Ratio: 4,000:1
Brightness: >1,000 Nits Servicing: Front
IP Rating: IP 40 Certification: CE, FCC,RoHS
Colours: 281 Trillion Expected Time: 100,000Hrs
Gray Scale: 16 Bit Driving Method: 1/40
High Light:

P2.5 Cylinder Flexible LED Display

,

9W Cylinder Flexible LED Display

,

SMD2121 Flexible Led Video Screen



Soft Rubber Module Flexible LED Display for any creative shape and size, which could be convex, concave or Twisted Available Module. Magnetic Connection for easy Maintenance.



Specification:



Soft  Ribbon Rubber:

Durable solt rubber module, anti-static electricity

Soft PCB and rubber material

Integrated SMD,IC,Circuit for easy maintenance and heat dissipation

Magnetic connection for easy maintenance













Parameters
  BS-2X BS-3
Physical Pitch 2.5 mm 3 mm
Pixel Configuration SMD 2121 SMD 2121
Pixel Density 160,000 pixels/m² 111,111 pixels/m²
Module Dimensions(W*H)(mm) 240*120 240*120
Panel Dimensions(mm) Customized Customized
Physical Resolution of Module(W*H) 96*48 80*40
Average Power Consumption 9 W 10 W
Max Power Consumption 12 W 13 W
Hotizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Refresh Rate >1,920Hz >1,920Hz









Slim and Lightweight and Quiet

5mm thickness, space efficiency

0.18kg per module, shipping cost and installation cost saving

Fanless design

9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display 0

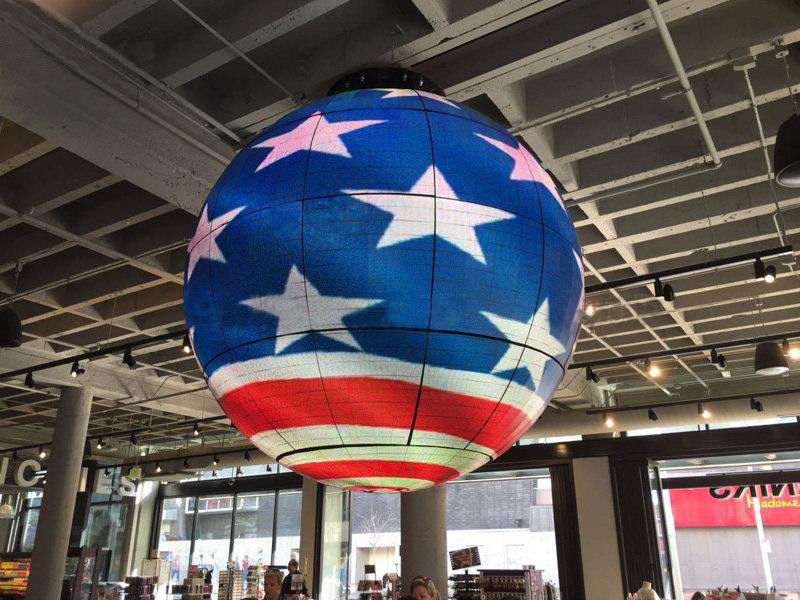

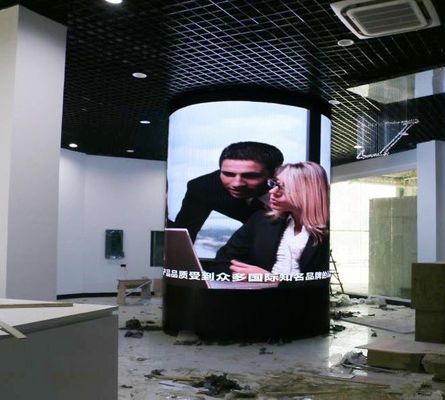

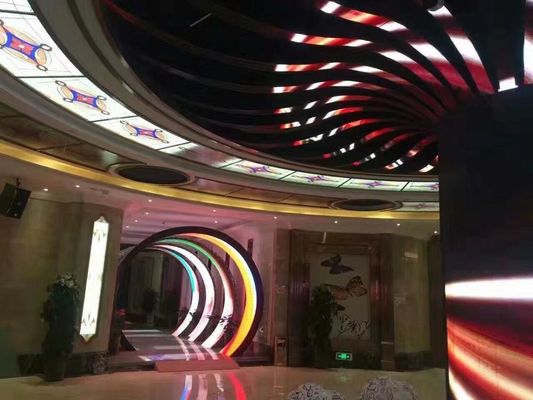

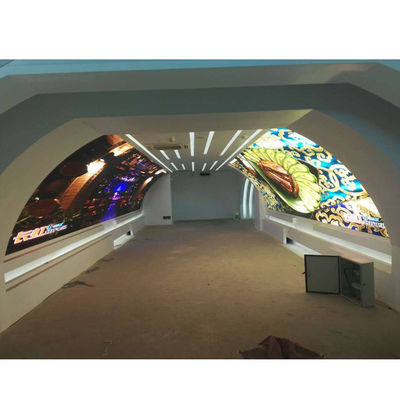

Creative and Customized Forms

For any convex,concave or twisted installations

Customized pixel pitched available for variable installations

9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display 1


9W SMD2121 1000 Nits P2.5 Cylinder Flexible LED Display 2



Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of

technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.





BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.





FAQ



Q1:How to choose a proper led screen for your need?


A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?

Q2:Which pixel pitch should i choose?


A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).


Q3:Which control system should i choose?


A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
