Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 10mm | Pannel Material: | Steel |
|---|---|---|---|
| Servicing: | Front/Rear | Refresh Rate: | ＞1920Hz |
| Contrast Ratio: | 2000:1 | Brightness: | ＞6500nits |
| High Light: | led digital billboard,outdoor led billboard |
||
P10 Nationstar Lamp Outdoor Fixed Energy Saving Billboard Led Display Wall Led Digital Sign Board
Energy Saving LED Billboard Quick Details:
1, Pixel Pitch: 10mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: Customized, cabinet weight:65kg/Sqm.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.
Energy Saving LED Billboard Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm,8mm, 10mm, 16mm, within these pixels, 6.67mm,8mm are the most hot-selling and highest cost-effective series.
Energy Saving LED Billboard Application:

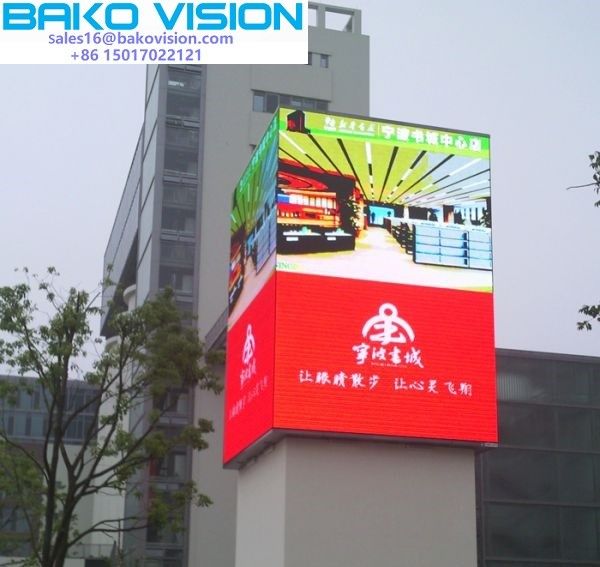

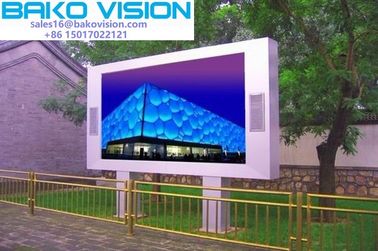

Bako Vision outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on.
Energy Saving LED Billboard Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,500nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6, ±10° adjustable, creative design to meet your requirement;
7, Nationstar lamp, high quality and long lifespan, ensure a good screen.
8, With Bako Vision Energy Saving technique, the power consumption reduce from 360W/Sqm to 90W/Sqm. If you install a 10 Sqm screen and light it for 15 hours per day. Then there will consume 19,710 Kw/h one year if you use previous product, then if you use our energy saving screen, then there only consume 4927.5 Kw/h one year, it saves 14782.5 Kw/h one year. This can save lots of your energy cost.
Energy Saving LED Billboard Specification:
| Physical Pitch | 10mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 10,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 320 x 320 |
| Panel Dimensions (mm) | 1280 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 4 x 3 |
| Physical Resolution of Module (W x H) | 32 x 32 |
| Physical Resolution of Panel (W x H) | 128 x 96 |
| Panel Material | Steal / Aluminum |
| Weight (kg/Sqm) | 45 |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W / Sqm |
| Max Power Consumption | 900 W /panel |
| Average Power After Energy Saving | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm |
| Brightness | >6,500 nits |
| Refresh Rate | >1,920 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/8 Scan |
Energy Saving LED Billboard Case:
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
