Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 4.81mm | Panel Material: | Die-casting Aluminium |
|---|---|---|---|
| Module Size:: | 250mm*250mm | LED Chip: | Nationstar |
| IP Rating:: | IP65 Waterproof | Life Span: | 100,000 Hrs |
| High Light: | outdoor led screen hire,events led display |
||
HD P3.91 Stage Background Led Display Big Screen Flexible Curtain Outdoor Screen
The best assistant of outdoor advertising. Suitable for stage, bank, promotion, exhibition,shopping mall, highway, station, KTV, stadium, airport and all outdoor places.
Main Features :
1. SMD 3-in-1 LEDs, nice videos, wide viewing angle.
Parameter
| BOR-III-3 | BOR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |
Products Image
1. Clip-On Mask Design
No screw when install masks. The surface of the module will be very smooth.
2. High Brightness >6800 nits LED Display
After finished the led module,we will have 48 hours for the led module aging.then do the Cabinet Assembly-Software Configuration-LED Display Inspection-Labeling-High Voltage Test-Ground Resistance-Test-QC-Packing. After Packing,We will arrange the shipment to the worldwide Customers.UNIT LED with their own technology,can make the SMD Outdoor led display screen with 8000 nits (cd/m2) Brightness.
4"H" Performance
High brightness: 4000 nits; High gray scale: 65536 levels;
High refresh rate: 1920 Hz; High contrast radio: 5000:1.
Better Grey Scale Grade
Stable and clear images, excellent dynamic showing, without scanning line, and the effect will be more nature if play point-to-point output image.

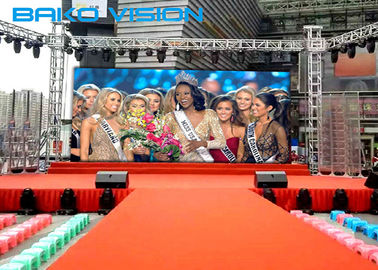

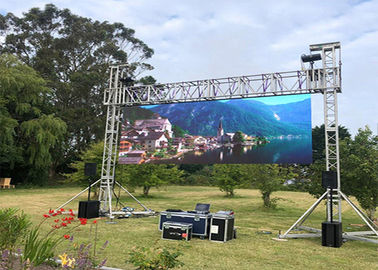

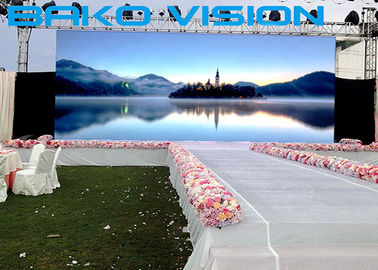

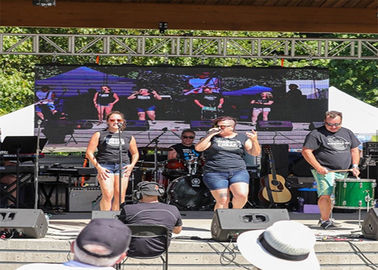

Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
