Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 3.91mm | Panel Material: | Die-casting Aluminium |
|---|---|---|---|
| Module Size:: | 250mm*250mm | LED Chip: | Nationstar |
| Power Supply: | G-energy | Life Span: | 100,000 Hrs |
| High Light: | events led display,led rental display |
||
P3.91 Smd Rgb Stacking Hanging Outdoor Rental Led Video Wall Waterproof Screen
Outdoor Full Color LED Display Function:
1. Excellent visual effect, better viewing effect for text and graphic or video
2. Large viewing angle,both H/V can reach 110 degree;getting vivid effect within any position of the viewing range;
3. High contrast ratio and good evenness, high uniformity,without mosaic
4. Resist of the high temperature and antioxidation and anti-statiic;
5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.
6. Long using life and MTBF
7. Competitive price,best after-sales service
8. 4 years warranty,life span 10 years.
Parameter
| BOR-III-3 | BOR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |
Products Image
After finished the led module,we will have 48 hours for the led module aging.then do the Cabinet Assembly-Software Configuration-LED Display Inspection-Labeling-High Voltage Test-Ground Resistance-Test-QC-Packing. After Packing,We will arrange the shipment to the worldwide Customers.UNIT LED with their own technology,can make the SMD Outdoor led display screen with 8000 nits (cd/m2) Brightness.
2. with fast lock system, can install and dismantle easily and quickly ;
3. Can be both front and rear service, easy for maintainence ;
4. Only about 8Kg per cabinet, can save the labor and transportation cost ;
5. With high refresh rate and high contrast ratio, can show very clear text/picture/video ;
6. Novastar, Linsn control system, it depends on your choice .

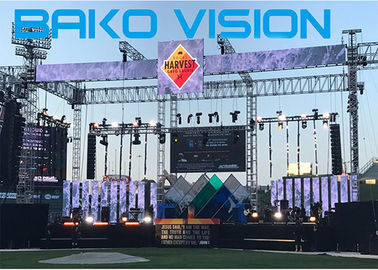

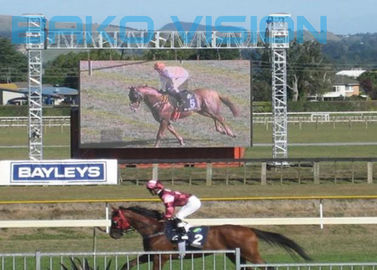

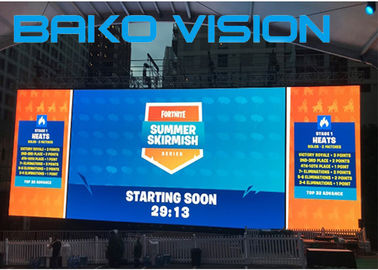

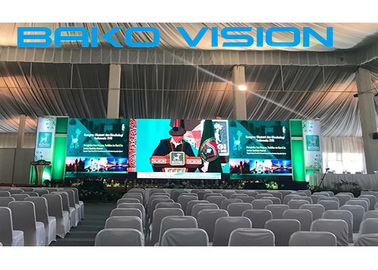

Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
