Product Details:
Payment & Shipping Terms:
|
| Module Dimensions (Wxh) (mm): | 250X250mm | Pixel Configuration: | SMD1921 |
|---|---|---|---|
| Panel Dimensions (mm): | 500X1000 | Panel Material: | Die-Casting Aluminum |
| Single Cabinet: | 24 Kg/Panel | Life Span: | 100,000 Hrs |
| Contrast Ratio: | 4,000 : 1 | Best Viewing Distance: | 8m |
| High Light: | indoor full color led display,led publicity screens |
||
Dance Floor Features:
1.BD-Dance floor led display.This product can sense function, all-round multi-angle touch, can interact with the audience, such as: interactive games, play interactive sensor video, etc.
2. Lower cost and durable material
This series have aluminum cabinet for option. The material is durable for lomg time use under different environment. It adop the energy-saving technology to save the cost a lot.
3.Higher refresh rate
This video dance floor adopt high quality MBI IC with high refresh function for indoor appliacation. It can reach a better levl between brightness, grey level and refresh rate.
4. The room can be directly scrubbed with a wet towel, strong shock resistance and good slip resistance (the actor can jump on it at will, will not slip)
Advantages
1. Interactive ----Radar system
If you want have a interactive led floor , the Radar system is emssentail .
It can be radiation 10 meters of the diameter , when people walk on the area floor , it can be interactive .
2. LED tiles screen has super PC cover bearing design which reaches load-bearing 1.5 tons.
3. Automatic brightness control
Front service , Strict quality control process, ensure 100,000 hours' service time, enjoy peace of mind for years to come
Parameter
| BD-6 | BD-8 | |
| Physical Pitch | 6.25mm | 8.928mm |
| Pixel Configuration | SMD2727 | SMD3528 |
| Pixel Density | 25,600 pixels/m² | 25600 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*1000 | 500*1000 |
| NO. of Modules Per Panel (W*H) | 2*4 | 2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 40*40 | 28*28 |
| Physical Resolution of Panel(W*H)(mm) | 80*160 | 56*112 |
| Single Cabinet Weight | 24kg/panel | 25kg/panel |
| Average Power Consumption | 300 W/panel | 300 W/panel |
| Max Power Consumption | 880 W/panel | 880 W/panel |
| Brightness | 4500 nits | 4500nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
| IP Rating(Front) | IP 65 | IP 65 |
| Best viewing distance | 8m | 8m |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/5 Scan | 1/3scan |
Pruduct details
LED tiles screen has super PC cover bearing design which reaches loa-bearing 1.5 tons. front service, IP65 waterproof.
Extradunarily heat sink design, work properly for a long time without cooling fans
Compact, rugged, and light weight aluminum alloy construction.

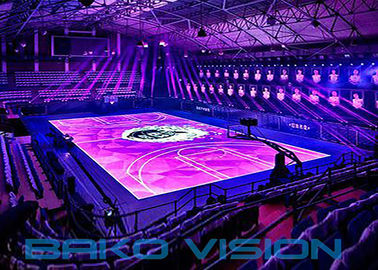

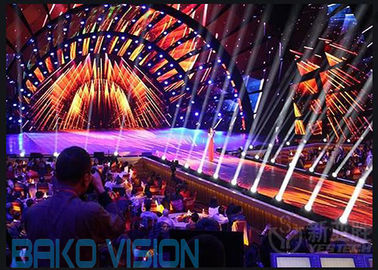

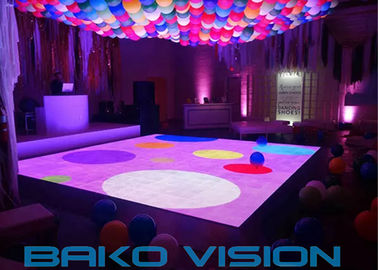

Application Application
1. Shopping Centres
2. Shops - Parties
3. Exhibitions and Trade Fairs
4. Corporate Events
5. Discotheques / Night Clubs
6. Children´s Entertainment
7. Seminars
8. Award Ceremonies
9. Product Launches
10. Advertising, Company Reception Areas
Packing/ Shipping -Flight case/ By sea or by air
Our company
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
