Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8 Mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Average Power Consumption: | 350 W/m2 | Max Power Consumption: | 600 W/m2 |
| IP Rating: | IP67 | Scanning Mode: | 1/2 Scan |
| Brightness: | 5500-7500 CD/M2 | Module Pixel Resolution: | 40dots*20dots / 32dots*16dots |
| Module Dimension: | 960*960mm /1024*1024mm | Cabinet Size: | 960mm*960mm*175mm |
| Drive Type: | Constant Drive | Package Mode: | SMD 3535 |
| High Light: | roadside led display,street led screen |
||
6500 nits High Brightness Outdoor P4 P5 LED Display for HD Advertising LED Display Sign9-BOF-B-Tia.pdf
Full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)
| Module Parameter | Item | Specification Parameter |
| Pixel Pitch, Resolution rate, size, weight | 8mm, 40*20 Dots, 320*160mm | |
| Pixel color, Pixel LED | 1R1G1B, SMD3535 | |
| Working voltage, Module Power | DC5V, 48W | |
| Driving IC, Driving way | MBI5124, 1/2S | |
| HUB | QP-HUB75(MRV220)-V1.1 |
Functions :
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer
Outdoor Fixed Installation LED Display Parameters:
| BOF-B-4 | BOF-B-5 | |
| Physical Pitch | 4 mm | 5 mm |
| Pixel Configuration | SMD 1818 | SMD 2727 |
| Pixel Density | 62,500 pixels/m² | 40,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 | 960 × 960 × 150 |
| Physical Resolution of Module (W × H) | 80 × 40 | 64 × 32 |
| Physical Resolution of Panel (W × H) | 240 × 240 | 192 × 192 |
| Average Power Consumption | 360 W/m² | 36 W/m² |
| Max Power Consumption | 900 W/ m² | 900 W/ m² |
| Average Power After Energy Saving | - | - |
| Max Power After Energy Saving | - | - |
| Brightness | ≥6500 nits | ≥6500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing angle | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs |

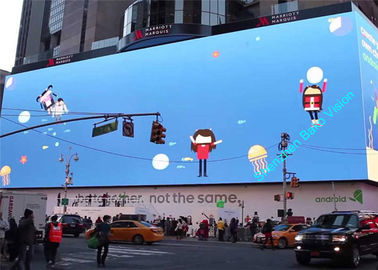

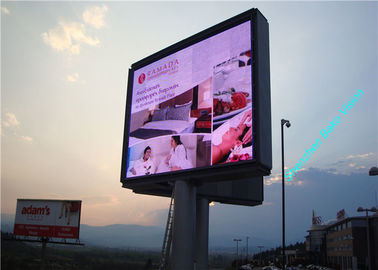

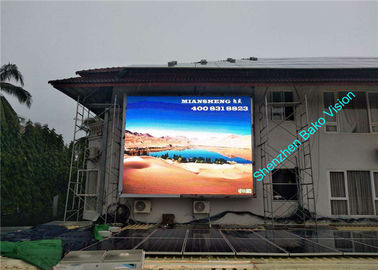

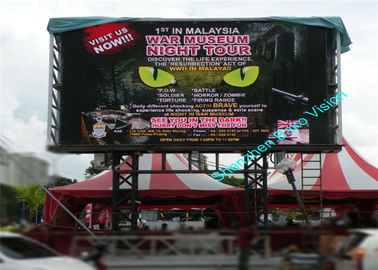

Outdoor Fixed Installation LED Display Cases:
Outdoor Fixed Installation LED Display Features:
1)This cabinet of SMD outdoor led display can serve as large advertising led wall with great visual effect.
2)It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium, airport and all outdoor places.
3)Ultra-thin cabinet and modular design can save installation and maintenance cost and also enhance work efficiency.
4)Adopted MBI constant current driver which can make refresh rate up to 1920Hz load with single receiving card in one cabinet. High quality product ensure stable and clear image output.
5)Special waterproof design protect your product out of water, the high quality is worthy of trust.
6)The outdoor SMD led display features NOVA control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass order needs about 15-20 days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
