| Cabinet Material: | Die-casting Aluminum | Panel Dimention: | 500*500/500*1000 |
|---|---|---|---|
| Brightness: | >1,200nits | Contrast Ratio: | 4000:1 |
| Usage: | Indoor | Tube Chip Color: | Full Color |
| Warranty: | 2 Years | Life Span: | 100,0000hours |
| High Light: | indoor full color led display,led publicity screens |
||
P3.91 Full Color Indoor LED Display High Definition Stage Indoor LED Panel
Product Quick Detail
1. Stable quality
2. High Contrast Ratio: 4,000:1
3. Module Size: 250*250mm
4. Horozontal Viewing Angle: 160°
Product Specification5-Indoor rental led display.pdf
| BIR-III-2X | BIR-III-2 | BIR-III-3 | BIR-III-4 | |
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/㎡ | 112,896 pixels/㎡ | 65,536 pixels/㎡ | 43,264pixels/㎡ |
| Module Dimensions (W*H)(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| Physical Resolution of Module(W*H) | 96*96 | 84*84 | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H) | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg/panel | 8/14kg/panel | 8/14kg/panel | 8/14kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 64/128W/panel | 64/128W/panel | 64/128W/panel | 64/128W/panel |
| Max Power Consumption | 192/384W/panel | 192/384W/panel | 192/384W/panel | 192/384W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >1,200nits | >1,200nits | >1,200nits | >1,200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Max Staking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
Product Description
1.SMD 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving.
2. Die-casting Aluminum material cabinet with slim thickness of 80mm ensure light weight, only 8kgs per panel, can be picked up by one hand, easy to install and dismantle, better for rental use.
3. Panel size can be 500x500mm or 500x1000mm,better for different screen sizes,and combine random.
4. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar.
5. Dot to dot maintenance, quick maintain and save cost.
6.No fans design, no noise caused, good environment protection.
7. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.
8.Can make curvilinear,concave,convex.
Typical Applications:
Touring rental,Stage rental,DJ touring,Shopping mall,Car show,Fashion store,House of Worship,Theme,Reception hall,Opera Hose,Wedding Hall,Resort.
Key Feature
Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
Optional of Front service and rear service
Front service module design, easy for maintenance
Silent operation
Excellent thermal management
Ultra slim and lightweight : 8kg per Cabinet Weight(500x500mm), 14kg per Cabinet Weight(500x1000mm), greatly saves transportation costs and labor costs.
Rental die-casting aluminum structure: rock solid, not easy to deform.
Color Gamut

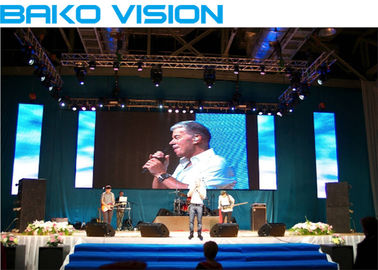

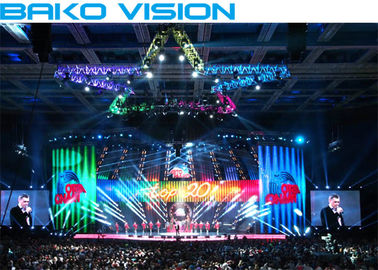

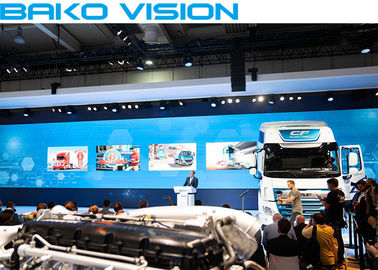

Case
Our Advantage
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality:All products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
