16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection

16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection
16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection 16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection 16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection

Large Image :  16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CCC.CE.ETL.FCC
Model Number: BOR-III

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight Case / Plywood Case
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 m²/month
Detailed Product Description
Pixel Pitch: 3.91mm / 4.81mm Panel Material: Die-casting Aluminum
Refresh Rate: >1920 Hz Brightness: >6000 Nits
Servicing: Front/Rear Contrast Ratio: 4000:1
Panel Dimensions: 500 X 500 X 80mm / 500 X 1000 X 80mm Weight: 9 / 15kg/Panel
High Light:

events led display

,

led rental display

  P3.91mm P4.81mm Waterproof Outdoor Rental LED Display Screen



    Features:

  • Curved angle : ±10° adjustable, creative design to meet your requirement;
  • 16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection 0
  • Panel Size: The Panel size is 500 x 500mm and 500 x 1000mm, there can make the screen size as : 4*3m ,6*4m,9*5m etc . It is suitable for 4:3 ,16:9 ratio ;Also you can adjust the screen size free as your wish.
  • High brightness: More than 6000nits
  • High waterproof grade: IP65 protection, can be sustain strong strom and rain, have the best waterproof ability in outdoor use,SMD LEDs, wide viewing angle, Hor. Ver. 140 degree;
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
  • Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  • 16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection 1
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • 2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.
  • High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;







  BOR-III-3 BOR-III-4
Physical Pitch 3.91mm 4.81mm
Pixel Configuration SMD1921 SMD2525
Pixel Density 65,536 pixels/㎡ 43,264 pixels/㎡
Module Dimensions(W x H) (mm) 250 x 250 / 250 x 500 250 x 250 / 250 x 500
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80 500 x 500 x 80 / 500 x 1000 x 80
NO. of Modules Per Panel (W x H) 2 x 2 2 x 2
Physical Resolution of Module (W x H) 64 x 64 / 64 x 128 52 x 52 / 52 x 104
Physical Resolution of Panel (W x H) 128 x 128 / 128 x 256 104 x 104 / 104 x 208
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 9 / 15 kg/panel 9 / 15 kg/panel
Processing 16bit 16bit
Colours 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1
Average Power Consumption 75 /150 W /panel 75 /150 W /panel
Max Power Consumption 225 /550 W /panel 225 /500 W /panel
Operating Temp/Humidity -20℃ - 60℃ / 10℃ - 60℃ -20℃ - 60℃ / 10℃ - 60℃
Storage Temp/Humidity -30℃ - 60℃ / 10℃ - 60℃ -30℃ - 60℃ / 10℃ - 60℃
Refresh Rate >1,920 Hz >1,920 Hz
Brightness >6,000nits >6,000nits
Horizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Max Stacking 20/10 20/10
Max Hanging 20/10 20/10
Servicing Front / Rear Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54 IP 65 / IP 54

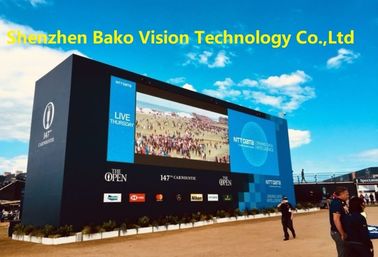

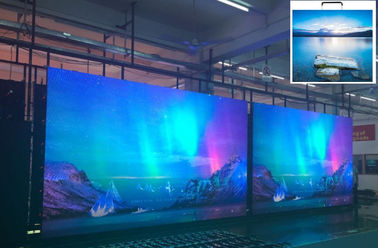

Application



16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection 2

16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection 3

16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection 4

16 Bit Processing Outdoor Rental LED Display P3.91 P4.81 Waterproof Seamless Connection 5



Why choose us?


1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.

2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.

3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.

4. Perfect after-sales services

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Free training for customers in factory.
  • Engineer onsite support for installation.
