Full Color 1R1G1B P3 1920Hz Indoor LED Video Wall for Fixed Install

Full Color 1R1G1B P3 1920Hz Indoor LED Video Wall for Fixed Install
Full Color 1R1G1B P3 1920Hz Indoor LED Video Wall for Fixed Install

Large Image :  Full Color 1R1G1B P3 1920Hz Indoor LED Video Wall for Fixed Install

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE RoHS
Model Number: BIF

Payment & Shipping Terms:

Minimum Order Quantity: 1 SQM
Price: negotiable price
Packaging Details: flight case/plywood case
Delivery Time: 25-35days
Payment Terms: L/C, T/T
Supply Ability: 6000 sqm/month
Detailed Product Description
Screen Dimension: Customized Tube Chip Color: Full Color
Usage: Indoor Pixels: 3mm
Display Function: Video,text,message,image,picture Brightness: 1200cd/sqm
Warranty: 2 Years Module Size: 192x192mm
Life Span: 100000hours Application: Indoor Advertising
Color: 1R1G1B,Full-color Pixel Density: 111,111pixels/m2
Refresh Rate: ≥1920Hz
High Light:

1920Hz Indoor LED Video Wall

,

1920Hz P3 LED Display

,

1R1G1B Indoor LED Video Wall

Full Color 1R1G1B P3 1920Hz Indoor LED Video Wall For Fixed Install



Basic Info.

Model NO.
BIF
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP21
Certification
CE, RoHS, UL, CCC, ETL
Trademark
Bako Vision
Transport Package
Plywood Case
Specification
Customized
Origin
China
HS Code
8528591090

Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 3mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 40kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2years.

Fixed Led Video Wall Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.

Fixed Led Video Wall Features:
1, High brightness from 900nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.
4, Meanwell brand power supply, saving energy and high efficiency.
5, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
6, You can choose front service or back service, it's easy for maintenance
7, Customized cabinet size fit different status

Fixed Led Video Wall Specification:

Physical Pitch 3mm
Pixel Configuration SMD2121
Pixel Density 111,111pixels/Sqm
Module Dimensions(W x H) (mm) 192 x192
Panel Dimensions (mm) 960 x 960
NO. of Modules Per Panel (W x H) 5 x 5
Physical Resolution of Module (W x H) 64 x 64
Physical Resolution of Panel (W x H) 256 x 192
Panel Material Steel / Aluminum
Scan Method 1/32 Scan
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 120 W /Sqm
Max Power Consumption 400 W /Sqm
Operating Temp/Humidity -10ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920Hz
Brightness 900-1,200nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating (Front/Rear) IP 21

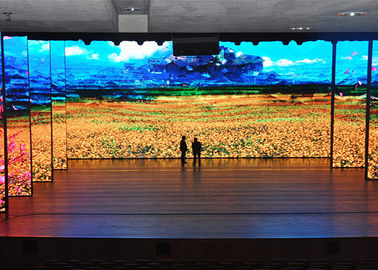

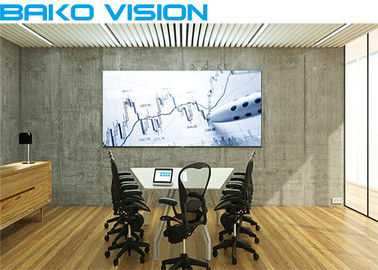

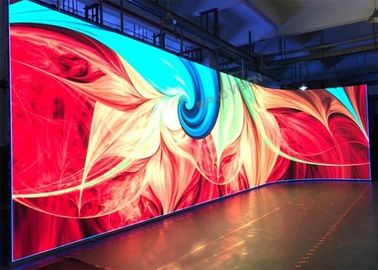

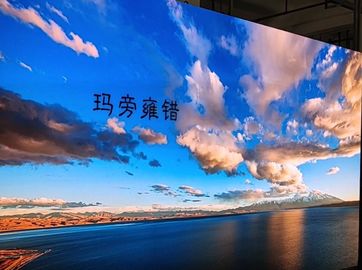

Fixed Led Video Wall Case:

Our service
Warranty
1. We guaratee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!

Delivery time
1. Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2. Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Installation
1. We can assist the training and technical support for the customer in the factory, if the customer require so.
2. We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
