P10 Outdoor Fixed LED Display Energy Saving Cool Low Temperature Waterproof

P10 Outdoor Fixed LED Display Energy Saving Cool Low Temperature Waterproof
P10 Outdoor Fixed LED Display Energy Saving Cool Low Temperature Waterproof P10 Outdoor Fixed LED Display Energy Saving Cool Low Temperature Waterproof P10 Outdoor Fixed LED Display Energy Saving Cool Low Temperature Waterproof P10 Outdoor Fixed LED Display Energy Saving Cool Low Temperature Waterproof

Large Image :  P10 Outdoor Fixed LED Display Energy Saving Cool Low Temperature Waterproof

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CC.UL,ETL
Model Number: BOR Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case / Plywood case
Delivery Time: 15-25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 8000square meter per month
Detailed Product Description
Pixel Pitch: 10mm Material: Die-cutting Aluminum
Brightness: >5,500 Nits Refresh Rate: 1920Hz
Certification: CE,UL,FCC,ISO9001 Cabinet Size: 960 X 960 X 10mm
High Light:

P10mm Outdoor Fixed LED Display

,

256x256 Outdoor Fixed LED Displayy

,

256x256 Outdoor Fixed LED screen

P8 Outdoor Fixed Energy Saving Cool Low Temperature Waterproof LED Video Billboard LED Display



Energy Saving LED Billboard Quick Details:
1, Pixel Pitch: 8mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: Customized, cabinet weight:65kg/Sqm.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.

Energy Saving LED Billboard Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm,8mm, 10mm, 16mm, within these pixels, 4.81mm,6.67mm,8mm are the most hot-selling and highest cost-effective series.

Energy Saving LED Billboard Application:
Bako Vision outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on.

Energy Saving LED Billboard Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.

3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6,
±10° adjustable, creative design to meet your requirement;
7, With Bako Vision Energy Saving technique, the power consumption reduce from 360W/Sqm to 90W/Sqm. If you install a 10 Sqm screen and light it for 15 hours per day. Then there will consume 19,710 Kw/h one year if you use previous product, then if you use our energy saving screen, then there only consume 4927.5
Kw/h one year, it saves 14782.5 Kw/h one year. This can save lots of your energy cost.

Energy Saving LED Billboard Specification:

Physical Pitch 8mm
Pixel Configuration SMD3535
Pixel Density 15,625 pixels/Sqm
Module Dimensions(W x H) (mm) 256 x 256
Panel Dimensions (mm) 1280 x 768 x 150
NO. of Modules Per Panel (W x H) 5 x 3
Physical Resolution of Module (W x H) 32 x 32
Physical Resolution of Panel (W x H) 160 x 96
Panel Material Steal / Aluminum
Weight (kg/Sqm) 40
Processing 16bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360 W / Sqm
Max Power Consumption 900 W / Sqm
Average Power After Energy Saving 90 W /Sqm
Max Power After Energy Saving 230 W /Sqm
Brightness >6,500 nits
Refresh Rate >1,920 Hz
Vertical Viewing Angle 160°
Horizontal Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Rear
IP Rating (Front/Rear) IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90%
Scan Method 1/10 Scan

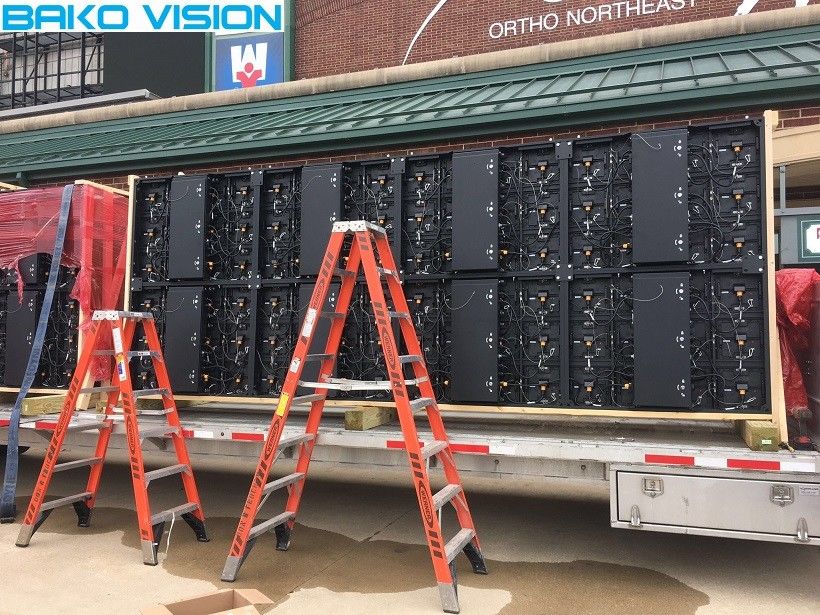

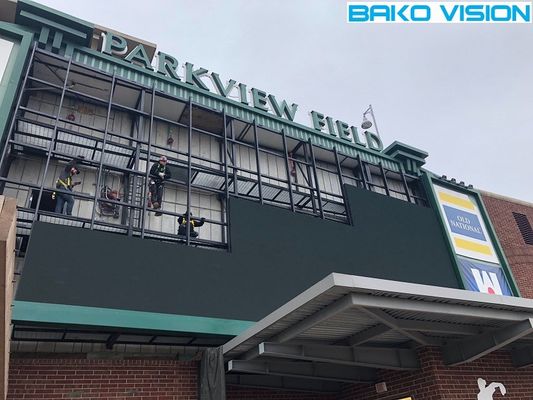

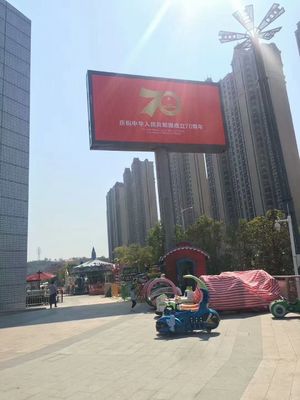

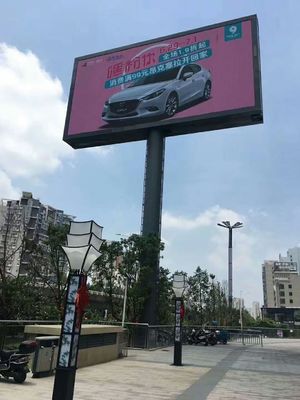

Energy Saving LED Billboard Case

P10 Outdoor Fixed LED Display Energy Saving Cool Low Temperature Waterproof 0


Our services

Pre-producing

  • Get complete requirements of clients.
  • To do a thorough analysis.
  • Offer a most reasonable and scientific solution.
  • Customized design.

In producing

  • Producing progress updating for clients.
  • Particular installation CAD and design diagram for clients.

After service

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Free training for customers in factory.
  • Arrange engineer go to your place to support installation.
