Product Details:
Payment & Shipping Terms:
|
| LEDs: | SMD2121 | Pixel Pitch: | 4mm |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 4000:1 |
| High Light: | 5mm Indoor Fixed LED Video Wall,4mm Indoor Fixed LED Video Wall,SMD2121 Indoor LED Video Wall |
||
Indoor Fixed LED Video Wall, TV Wall with pixel pitch 4mm,5mm for shop mall and supermarket
Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 4mm 5mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 40kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2 years.
Indoor Led Video Wall Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.
Indoor Video Wall Features:
1, High brightness from 900nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.
4, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
5, You can choose front service or back service, it's easy for maintenance
Indoor Fixed Led Video Wall Specification:
| Physical Pitch | 4mm | 5mm |
| Pixel Configuration | SMD2121 | SMD2121 |
| Pixel Density | 62,500 pixels/Sqm | 40,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 128 | 320 x 160 |
| Panel Dimensions (mm) | 1024 x 768 | 1280 x 960 |
| NO. of Modules Per Panel (W x H) | 4 x 6 | 4x 6 |
| Physical Resolution of Module (W x H) | 64 x 32 | 64 x 32 |
| Physical Resolution of Panel (W x H) | 256 x 192 | 256 x 192 |
| Panel Material | Steel / Aluminum | Steel / Aluminum |
| Scan Method | 1/16 Scan | 1/16 Scan |
| Gray Scale | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 120 W /Sqm | 120 W /Sqm |
| Max Power Consumption | 400 W /Sqm | 400 W /Sqm |
| Operating Temp/Humidity | -10ºC - 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920Hz | >1,920Hz |
| Brightness | 900-1,200nits | 900-1,200nits |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 21 | IP 21 |

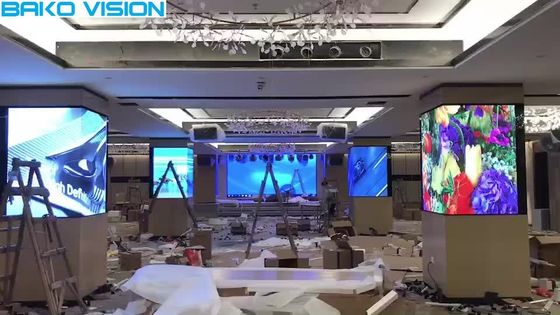

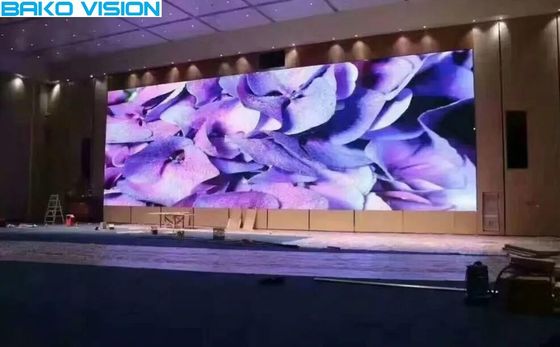

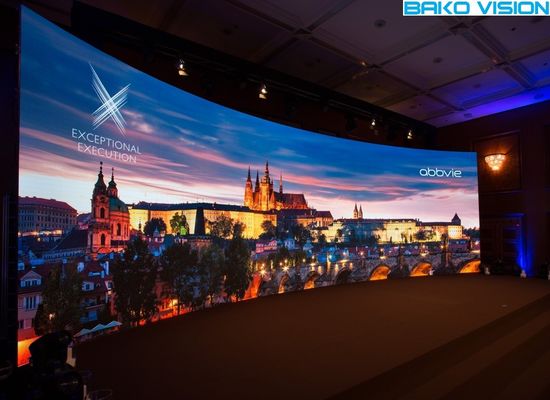

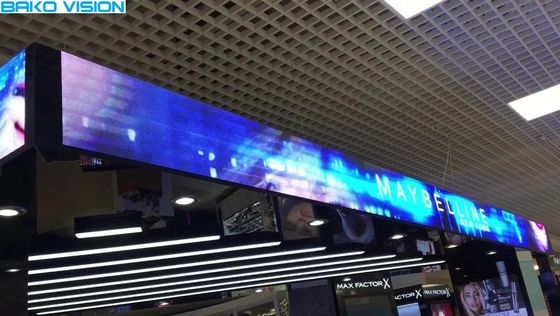

Fixed Led Video Wall Case:
Our service
Warranty
1. We guaratee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!
Delivery time
1. Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2. Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1. We can assist the training and technical support for the customer in the factory, if the customer require so.
2. We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
