Product Details:
Payment & Shipping Terms:
|
| Product Name: | Media Player | Pixel Pitch: | 1.875mm/2mm/2.5mm/3mm |
|---|---|---|---|
| Panel Size: | 640*1920mm | Panel Material: | Aluminum/Steel |
| Panel Thickness: | 33mm | Maintenance Way: | Front Service |
| Driving IC: | MBI5124IC | Brightness: | 1,000~3,500 Nits |
| Refresh Rate: | >1920Hz | Contrast Ratio: | 4000:1 |
| Warranty: | 2~5 Years | ||
| High Light: | 3500 nits Media Player Digital Signage,3500nits Floor Standing Display,1.875mm Media Player Digital Signage |
||

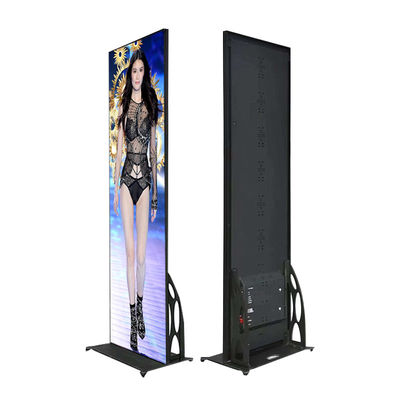

Indoor Advertising Screen Media Player Digital Signage Poster Floor Standing Display Vertical Kiosk
BP Series (BP.pdf)
Poster LED Screen
| Specifications | |
| Pixel Pitch(mm): | 1.875 / 2 / 2.5 / 3 |
| Cabinet Material: | Die-casting aluminum |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Light weight design, easy to move and carry, plug to play |
Floor Standing Kiosk Features
This LED Poster Display is widely used in market, shopping store, hotel lobby and restaurant etc. It's ultra thin(33mm thickness) and ultralight(28kg/set) when compared with other products. You can see how attractive and fashionable it is.
1. Engineered with latest technologies to give it smoother, slimmer profile.
2. It's crafted in beautiful anodized lightweight yet durable aluminium to make the entire poster frame weight less than40kg, making it more portable and easier to install.
3. Save time and labor cost for installation, just let it stand alone.
4. Multiple Display Method: LED Poster is being designed in a way that it is not only a standee, it can be installed with various display method like hanging, side mounted and wall mounted. These allows you to showcase your products in varies ways to suit your interior designs and decorations.
5. Suitable for exhibition, restaurants, retail businesses and shopping mall to showcase your products in a unique way.
LED Mirror Screen Descriptions
1. Smart Split Screen, Various Uses - Various usage, optional ways of split screen as you like, support HD pictures or videos split screen display mode, even mixed display mode.
2. Rapid Release, Smart Control - Wireless control, program edit, split screen etc via phone, computer at your available time.
3. USB Version One-click Loop Playback - Automatic identified system: Plug into USB driver or SD card can realize automatically loop as soon as booting.
4. Ultra Thin, Preciouly Simple - Extremely simple design, light weight to realize turely ultra-thin and portable.
Digital LED Signage Parameters
| Pixel Pitch | 1.875mm | 2.5mm | 2.5mm Pro | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 157,464pixels/m² | 110,889pixels/m² |
| Module Dimention(mm) | 160 × 160 | 320 × 160 | 280 × 210 | 192 × 192 |

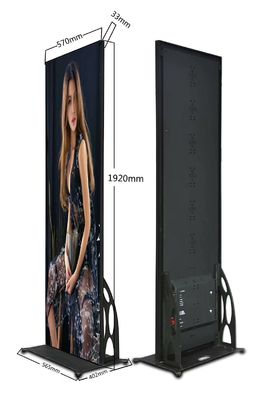

| Whole Set Dimention(mm) | 640 × 1920 × 35 | 640 × 1920 × 35 | 571× 1897 × 33 | 576 × 1920 × 35 |
| Resolution of Module | 84 x 84 | 64× 64 | 108× 81 | 64 × 64 |
| Resolution of Whole Set | 336 × 1010 | 256 × 768 | 216 × 729 | 192× 640 |
| Panel Material | Aluminum / Steel | |||
| Cabinet Weight | 32 kg | 32 kg | 28 kg | 32 kg |
| Gray Level | 16 bit(281 trillion colors) | |||
| Average Power Consumption | 250W/Set | 200W/Set | 100 W/ Set | 200 W/ Set |
| Max Power Consumption | 750W/Set | 600W/Set | 390 W / Set | 600 W / Set |
| Driving Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Brightness | >1,000 nits | >1,000 nits | >1,000/3500 nits | >1,000 nits |
| Refresh Rate | ≥1,920 Hz | ≥1,920 Hz | ≥3,840 Hz | ≥1,920 Hz |
| Viewing Angle(V/H) | 160°/ 140° | |||
| Operating Temp/Humidity | -10ºC~60ºC / 10%~60% | |||
| Storage Temp/Humidity | -30ºC~60ºC / 10%~60% | |||
| IP Rating (Front/Rear) | IP40 | |||
| Expected Lifetime | 100,000 Hrs | |||
Advertising LED Poster Applications
Variously applied in Shopping Mall/Stores/Supermarket/Theater/Hotel/Car 4s/Real Estates, etc..
FAQ on LED Poster
1. Do you still need to assemble it after buying it? Is there any guidance?
The 'upright' LED poster screen does not need to be assembled; the LED screen manufacturer will ship the finished product, you receive it and plug and play.
However, if a type such as “hanging” is purchased, separate instructions for installation will be required.
2. How can I repair a broken poster screen?
Simply pull out the clip on one side of the screen and remove the corresponding module.
3. How does the LED poster screen sound work?
All you need to do is play the video file with the accompaniment, and the LED poster screen will automatically play the sound without separate processing.
4. What control system is used for LED poster screens? What to look out for in a single screen and a spliced screen?
BAKO VISION offers this product with the Novastar T1 system, the Novastar T6 system.
The difference is that:
Under the T1 system, support for single use.
Under the T6 system, 2-8 units can be spliced by adding an HDMI HD cable between the LED poster screen.
Flight Case Packages
About Bako Vision
FAQ:
Q1: How to choose a proper led screen for your need?
A: You just need to think of 3 simple questions when you choose a led screen by yourself.
1. Will you use it indoor or outdoor?
2. Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3. what is the appoximate size of the led screen you would like to purchase?
Q2: Which pixel pitch should i choose?
A: There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3: Which control system should i choose?
A: There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
