P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet

P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet
P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet

Large Image :  P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC RoHS ISO CCC
Model Number: BIF Series

Payment & Shipping Terms:

Minimum Order Quantity: 1㎡
Price: Negotiation
Packaging Details: Wooden case or flight case
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm/month
Detailed Product Description
LEDs: SMD2121 Control System: Novastar
Servicing: Front Viewing Angle: 160°/140°
Refresh Rate: >1920Hz Contrast Ratio: 4000:1
High Light:

P5 Indoor Fixed LED Screen

,

P Indoor Fixed LED Screen

,

SMD2121 Fixed LED display

Indoor P4 P5 Fixed LED Screen Wall Front Access with Steel cabinet for Mall

Indoor Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 4mm 5mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 25kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2 years.

7, Front Access, you can install and maintanence it from front

Fixed Led Wall Description :
Bako Vision indoor Fixed LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.This product can be easy use for advertising and Movie.

Fixed Video Wall Features:

1, High brightness from 900nits to 1,200nits, visible from every direction indoor. You can see it very clear during day and night.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
    Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, customized cabinet can fit different place and install as different size
4, Meanwell brand power supply, saving energy and high efficiency. There can be UL/CE/BIS certificated.
5, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
6, You can choose front service or back service, it's easy for maintenance

Fixed Led Video Wall Specification:



Physical Pitch 4mm 5mm
Pixel Configuration SMD2121 SMD2121
Pixel Density 62,500 pixels/Sqm 40,000 pixels/Sqm
Module Dimensions(W x H) (mm) 256 x 128 320 x 160
Panel Dimensions (mm) 1024 x 768 1280 x 960
NO. of Modules Per Panel (W x H) 4 x 6 4x 6
Physical Resolution of Module (W x H) 64 x 32 64 x 32
Physical Resolution of Panel (W x H) 256 x 192 256 x 192
Panel Material Steel / Aluminum Steel / Aluminum
Scan Method 1/16 Scan 1/16 Scan
Contrast Ratio 4,000 : 1 4,000 : 1
Average Power Consumption 120 W /Sqm 120 W /Sqm
Max Power Consumption 400 W /Sqm 400 W /Sqm
Operating Temp/Humidity -10ºC - 60ºC / 10% - 60% -10ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920Hz >1,920Hz
Brightness 900-1,200nits 900-1,200nits
Horizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Servicing Front / Rear Front / Rear

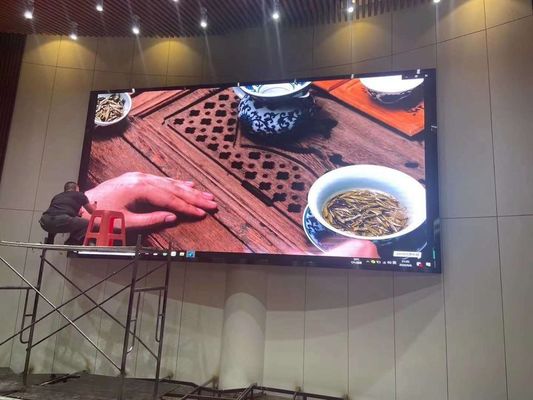

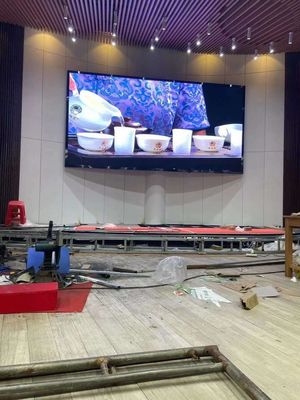

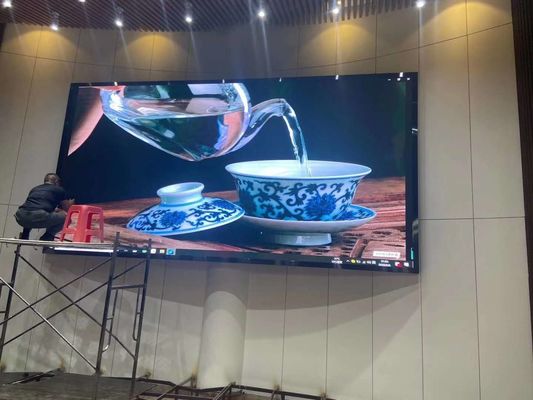

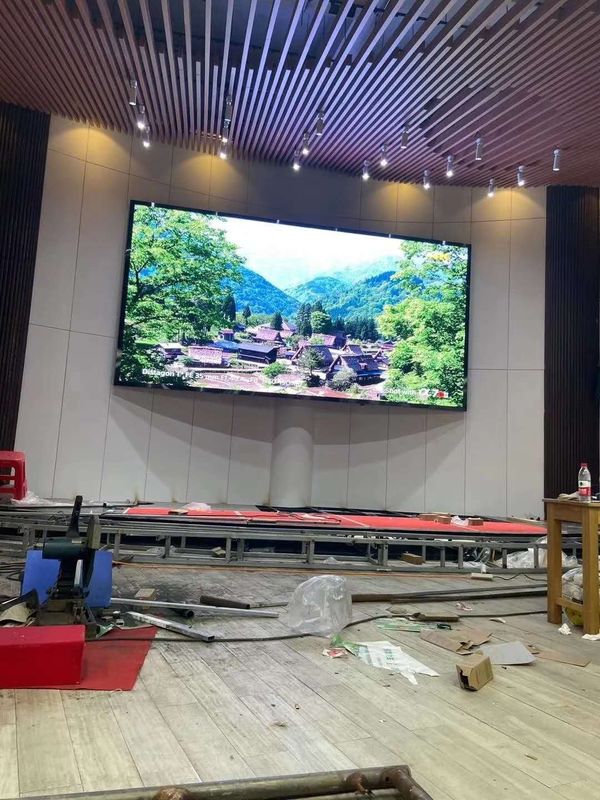

Fixed Led Video Wall Case:

P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 0

P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 1P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 2P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 3P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 4P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 5P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 6P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 7P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 8P4 P5 Indoor Fixed LED Screen Wall Front Access With Steel Cabinet 9


Our service
Warranty
1. We guaratee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!

Delivery time
1. Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2. Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Installation
1. We can assist the training and technical support for the customer in the factory, if the customer require so.
2. We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
