Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen

Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen
Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen

Large Image :  Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: RoSH,EMC,SASO,CE,Form-E,CO,Form-A
Model Number: P4.81

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case/wooden case
Delivery Time: 7 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000sqm/month
Detailed Product Description
Pixel Pitch: 4.81mm Pixel Density: 43264 Pixels/m2
Brightness: >6500nits Driving Method: 1/13
Cabinet Dimension: 500x500mm/500x1000mm
High Light:

SMD2121 Stage Led Display

,

P4.81 Led Display Screen Rental

P4.81 High Quality Outdoor LED Video Wall Screen High Contrast Ratio LED Display Stage Event Show Background



Lightweight and Seamless



Product Feature

1 Integrated design: power and receiver card integrated in the control panel, no signal cable between the module and the power line, greatly improving the stability and reliability;
2 Stable circuit control technology, simple operation, easy maintenance;
3 Unique die-cast aluminum box structure, stable, durable, lightweight;
4 very "light, thin, dense" feature, in order to provide a greater realization of creative space;
5 accurate, fast and flexible installation location, can effectively respond to different application areas;
6 Deep gray scale processing technology, high-quality screen refresh, and create fantastic stage effects;
7 Easy maintenance: with power and signal work status self-check function, real-time display each product's power and signal work status, when a product does not display screen, to help you quickly determine the problem quickly and make the appropriate repair measures;



Specification

Model BOR-II-4.8
Pixel Pitch 4.81mm
Pixel Density 43264 pixels/m2
LED Type SMD2121
LED Configuration 1R1G1B
Cabinet Dimension 500*500mm/500*1000mm
Cabinet Resolution 104*104px/104*208px
Cabinet Weight 8kg(13kg)
Cabinet Material die casting aluminum
Ingress Protection(front/rear) IP40/IP21
Brightness >1200nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/13 Scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1500Hz
Gray Scale 16bit
Power Consumption(avg.) 320w/m2
Input Voltage AC 110/220±10%/50~60Hz
Temperature(operating/storage) -20~50°C / -40~60°C
Humidity(operating/storage) 10%~90%RH / 10%~85%RH
MTBF ≥1000hrs
Life Span ≥50000hrs
Pixel Failure <0.0002

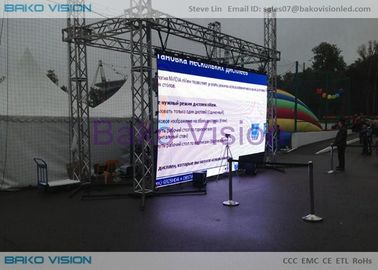

Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen 0

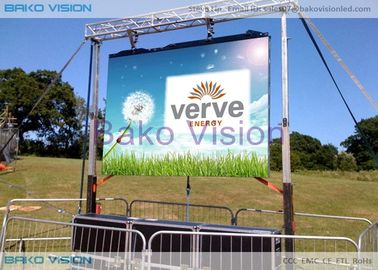

Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen 1

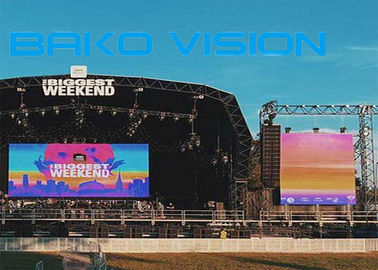

Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen 2

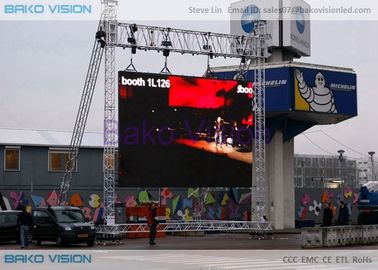

Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen 3

Stage Background P4.81 SMD2121 Outdoor LED Video Wall Screen 4



FAQ

1) Reply your inquiry in 24 working hours.


2) Experienced staffs answer all your query in fluent English,Spanish,French,German etc.



3) Customized design is available,OEM & ODM are welcomed.



4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.



5) Special discount and protection of sales area provided to our distributor.


6) Warmly welcome your visit in our company if available.


7) Guidance service: We can guide on line if customers have questions about the installation and usage.

For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.


8) Warranty period: 2 years after shipment.
