1920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display

1920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display
1920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display

Large Image :  1920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CC.UL,ETL
Model Number: BOR Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case / Plywood case
Delivery Time: 15-25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 8000square meter per month
Detailed Product Description
Pixel Pitch: 3.91mm Pixel Density: 43264 Dots/㎡
Brightness: >5,500 Nits Refresh Rate: 1920Hz
Certification: CE,UL,FCC,ISO9001 Cabinet Size: 500 X 500 X 80mm / 500 X 1000 X 80mm
High Light:

5500 Nits Led Display Board

,

P3.91 Outdoor Led Display Panels

Pixel Pitch 3.91mm Outdoor LED Digital Video Display Screen Hight Brightness





P3.91 Led Display Screen Features and Advantages:

  • Curved angle : ±10° adjustable, creative design to meet your requirement;
  • Panel Size: The Panel size is 500 x 500mm and 500 x 1000mm, there can make the screen size as : 4*3m ,6*4m,9*5m etc . It is suitable for 4:3 ,16:9 ratio ;Also you can adjust the screen size free as your wish.
  • High brightness: More than 5500nits
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
  • Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • 2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.

1920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 0


P3.91 Digital Led Display Screen Specification


Physical Pitch 3.91mm
Pixel Configuration SMD1921
Pixel Density 65,536 pixels/Sqm
Module Dimensions(W x H) (mm) 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80
NO. of Modules Per Panel (W x H) 2 x 2 / 2 x 4
Physical Resolution of Module (W x H) 64 x 64
Physical Resolution of Panel (W x H) 128 x 128 / 128 x 256
Panel Material Die-Casting Aluminum
Single Cabinet Weight 9 / 12.5 kg/panel
Processing 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 75 /150 W /panel
Max Power Consumption 225 /550 W /panel
Operating Temp/Humidity -20℃ - 60℃ / 10℃ - 60℃
Storage Temp/Humidity -30℃ - 60℃ / 10℃ - 60℃
Refresh Rate >1,920 Hz
Brightness ≥6,000nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54

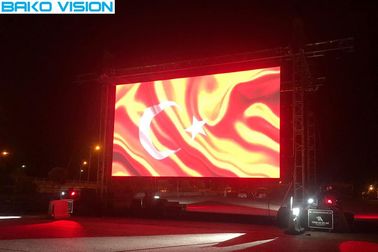

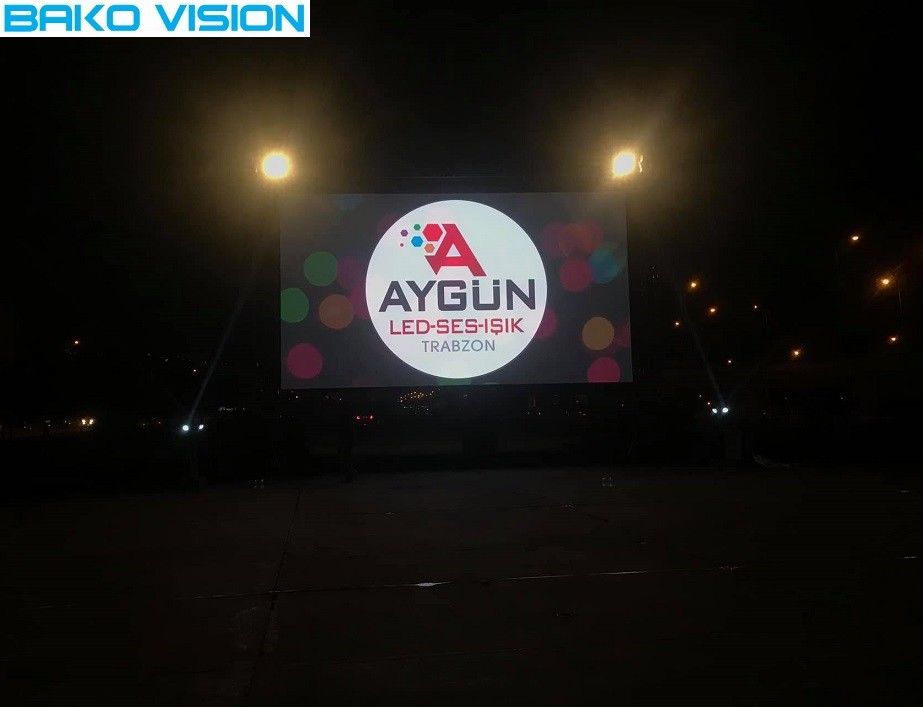

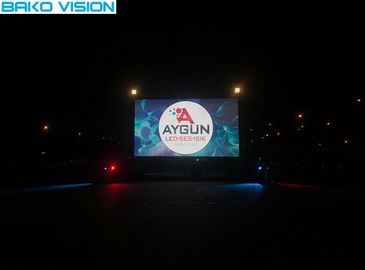

P3.91 Digital Led Display Screen Case



1920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 1
1920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 21920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 31920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 41920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 51920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 61920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 71920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 81920Hz 5500 Nits Pixel Pitch 3.91mm Digital LED Video Display 9







P3.91 Digital Led Display Screen FAQ

1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.

2. What kind of display we provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.

3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 10 years experience for LED display as a LED manufacturer located in Shenzhen

4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.

5.May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.

6.What is the payment method?
We support the payment methods as TT, L/C.

7.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system

8.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.

9. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
