Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 8mm | Pannel Material: | Steel/Aluminum |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Brightness: | ＞6500nits | IP Rating(Front/Rear): | IP65/IP54 |
| High Light: | P8 Fixed Advertising Video Screen,Nationstar Lamp Led Billboard Signs |
||
P8 Nationstar Lamp Fixed Led Outdoor Advertising Video Screen Full Color High Brightness Weatherprotected
Outdoor Fixed LED Screen Quick Details:
1, Pixel Pitch: 8mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size:Customized
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.
Outdoor Fixed LED Screen Features
1. Outdoor waterproof with IP65 for various weather condition.
2. High definition and high refresh rate, suitable brightness adjustable for outdoor day and night.
3. Fast installation and easy maintenance.Front service saves the space.
4. Good heat dissipation. Every cabinet is equipped with fans to let the hot wind blow out and cold wind blow in.
5. Intelligent control and player system by cloud technology, time management and real time monitoring.
Outdoor Fixed LED Screen Specification
| Physical Pitch | 8mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 256 |
| Panel Dimensions (mm) | 1280 x 768 x 150 |
| NO. of Modules Per Panel (W x H) | 5 x 3 |
| Physical Resolution of Module (W x H) | 32 x 32 |
| Physical Resolution of Panel (W x H) | 160 x 96 |
| Panel Material | Steal / Aluminum |
| Weight (kg/Sqm) | 40 |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W /panel |
| Max Power Consumption | 900 W /panel |
| Average Power After Energy Saving | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm |
| Brightness | ＞6,500 nits |
| Refresh Rate | ＞1,920 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Rear |
| IP Rating (Front/Rear) | IP 65 |
| Operating Temp/Humidity | -20℃ - 50℃ / 10% - 90% |
| Storage Temp/Humidity | -20℃ - 50℃ / 10% - 90% |
| Scan Method | 1/10 Scan |

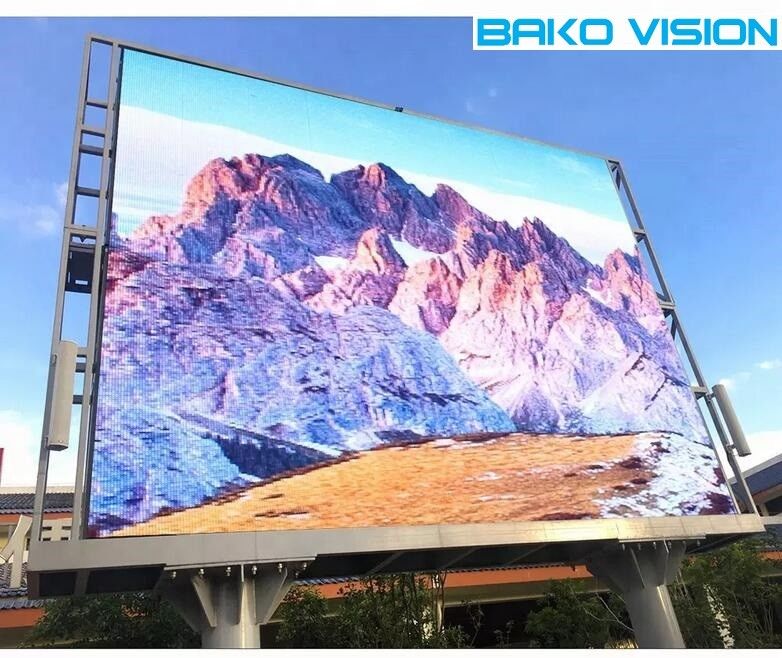

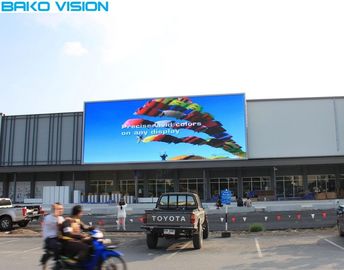

Outdoor Fixed LED Screen Case
Why choose us?
1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.
2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.
3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.
4. Perfect after-sales services
