Product Details:
Payment & Shipping Terms:
|
| Power Supply: | Meanwell/E-Energy | Supply Voltage: | AC220/110V |
|---|---|---|---|
| Warranty: | 2 Years | IC Driver: | Mbi5124/Icn2038s |
| Brightness(CD/M2): | 2500(CD/M2) | LED Chip: | Epstar/Kinglight/Nationstar |
| Specification: | Specification | Pixel Density: | 40,000 Pixels/Sqm |
| Pixel Configuration: | 1G 1R 1B | Scanning Mode: | 1/32 Scan |
| Pixel Pitch: | 5mm | Tube Chip Color: | Full Color |
| Operating Temperature: | -30~-60t | Color Temperature: | 6500K-9500K |
| Viewing Distance: | 4m - 40m | Lamp Tube: | SMD2020/2121 |
| High Light: | stage led video wall,led video wall display |
||
Full Color Indoor LED Fixed Install Display Screen High Defitnistion for Meeting Room Conference Show Room7-BIF-Tia.pdf
Indoor Fixed LED Display Screen Product description
1) Indoor P4 SMD2020 led screen is made by first-class LED Lamp chip.
2) Support text, graphic, animation and video with synchronous/asynchronous.
3) High contrast, good flatness, wide viewing angle, low energy consumption.
4) Easy installation & application, freely meet customized picky requirements.
5) Long-term brightness capacity through product life-time with 100000 hours.
6) Sensors such as brightness/temperature/humidity display can be extended.
7) General configuration: power supply, control system, cabinet & processor.
8) General performance: 100,000-hour efficient life-time & 10,000-hour MTBF.
Indoor Fixed LED Display Screen for Permanent Installation Parameters:
| LED | LED type | wave Length(nm) | Average Brightness (mcd) |
Test Condition |
| Red(R) | SMD 2121 (Black) |
620-625nm | 130-190mcd | 25ºC,20mA |
| Green(G) | 516-530nm | 200-300mcd | 25ºC,10mA | |
| Blue(B) | 465-475nm | 23-40mcd | 25ºC,5mA |
| Model | BIF-3 | BIF-4 |
| Physical Pitch | 3 mm | 4 mm |
| Pixel Configuration | SMD 1212 | SMD 1212 |
| Pixel Density | 111,111 pixels/m² | 62,500 pixels/m² |
| Module Dimensions (W × H) (mm) | 192 × 192 | 256 × 128 |
| Panel Dimensions (mm) | 960 × 960 | 1024 × 768 |
| NO .of Modules Per Panel (W × H) | 5 × 5 | 4 × 6 |
| Physical Resolution of Module (W × H) | 64 × 64 | 64 × 32 |
| Physical Resolution of Panel (W × H) | 320 × 320 | 256 × 192 |
| Panel Material | Steel / Aluminum | Steel / Aluminum |
| Processing | 16 bit | 16 bit |
| Colour | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 120 W /㎡ | 120 W/㎡ |
| Max Power Consumption | 400 W /㎡ | 400 W /㎡ |
| Brightness | >1,000 nits | >1,000 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Vertical Viewing angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hours | 100,000 Hours |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP21 | IP21 |
| Operating Temp/Humidity | -20℃- 50℃ / 10% - 90% | -20℃- 50℃ / 10% - 90% |
| Storage Temp/humidity | -20℃- 50℃ / 10% - 90% | -20℃- 50℃ / 10% - 90% |
Indoor Fixed LED Display Screen for Permanent Installation Features:
1. Easy to install and disassemble.
2. Indication lights to show status of power and signal.
3. The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp

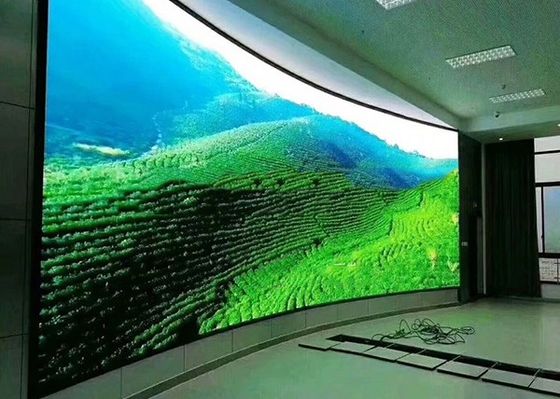

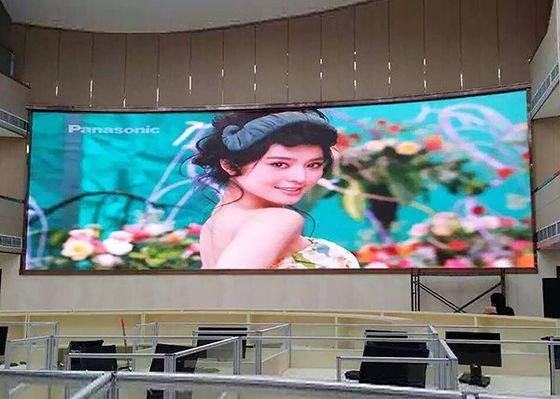

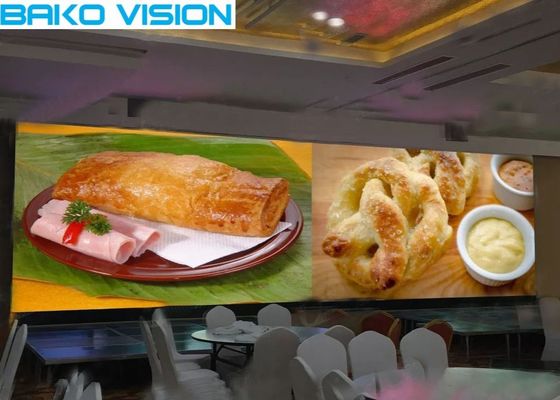

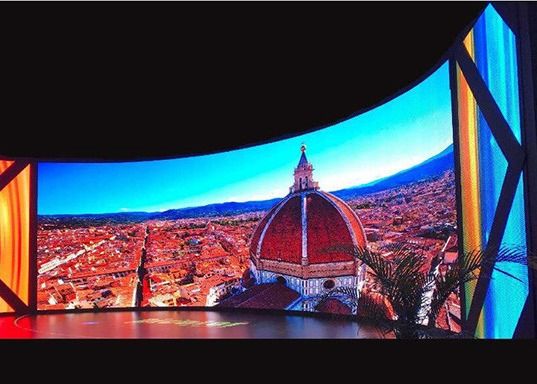

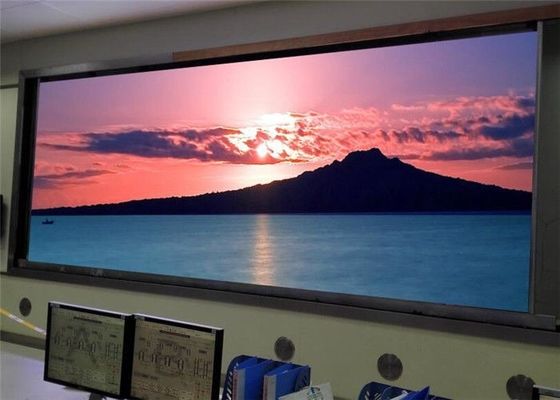

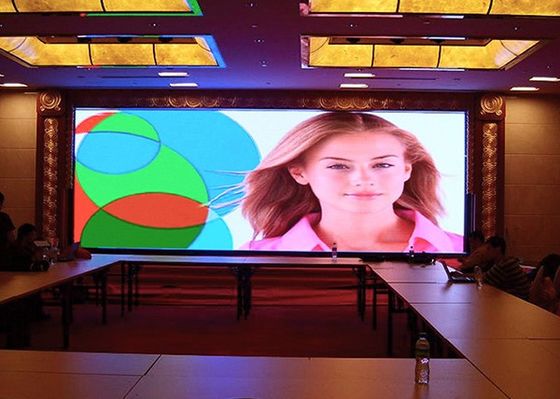

Indoor Fixed LED Display Screen for Permanent Installation Cases:
Package
We use carton with foam sheet and cabinet with wooden case/flight case.
We will choose the most practical package as to customer's requirements.
1) Carton with foam plate / EPE
2) Neutral packaging without logo
3) Anti-shaking wooden case package for sea shipment.
4) Flight case package with convenient transportation.
5) Customized package can be designed and made.
FAQ:
1) Q: How can I place an order and how it works?
A: Generally, first, we could make samples for customers, according to the artworks, affirmed material, processing or workmanship. After the sample is confirmation, we will produce the mass production. And, meanwhile, we will show you the pre production.
2) Q: What's the shipment method?
A: We often use DHL, FEDEX. UPS, TNT or Sea Shipping to ship our products.
3) Q: What's the payment method?
A: You can pay by L/C, T/T, Western Union
4) Q: Can I have samples to test the quality?
A: Yes, you can buy any sample to test the quality.
5) Q: What's the delivery time and can you lower the price?
A: It depends on your order and which shipping way you choose.The delivery time is usually within 25-30 days. If you have placed an order of large quantities, then, of course, the price can be lowered.
For more information, pls contact us, we will reply in 24 hours.
