Product Details:
Payment & Shipping Terms:
|
| Cabinet Material: | Die-casting Aluminum | Panel Dimention: | 500*500/500*1000 |
|---|---|---|---|
| Brightness: | >1,200nits | Contrast Ratio: | 4000:1 |
| Usage: | Indoor | Tube Chip Color: | Full Color |
| Warranty: | 2 Years | Life Span: | 100,0000hours |
| High Light: | led publicity screens,indoor led billboard |
||
Led Display Screen Indoor Rental LED Display Full Color Durable 2 Years Warranty
Indoor Rental LED Display Specification4-BIR-II-Tia.pdf
| BIR-III-2X | BIR-III-2 | BIR-III-3 | BIR-III-4 | |
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/㎡ | 112,896 pixels/㎡ | 65,536 pixels/㎡ | 43,264pixels/㎡ |
| Module Dimensions (W*H)(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| Physical Resolution of Module(W*H) | 96*96 | 84*84 | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H) | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg/panel | 8/14kg/panel | 8/14kg/panel | 8/14kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 64/128W/panel | 64/128W/panel | 64/128W/panel | 64/128W/panel |
| Max Power Consumption | 192/384W/panel | 192/384W/panel | 192/384W/panel | 192/384W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >1,200nits | >1,200nits | >1,200nits | >1,200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Max Staking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
Full Color LED Screen Product
Industrialized Production: Patented technology, independent die sinking, precise welding and automatic processing all take the lead in LED industry.
No Black Screen during Use: Constituted by loop transmission, intelligent switch, anti-hacker security and fault alarm, the most reliable data transmission mode is incorporated internally.
Key Feature
Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
Optional of Front service and rear service
Front service module design, easy for maintenance
Silent operation
Excellent thermal management
Ultra slim and lightweight : 8kg per Cabinet Weight(500x500mm), 14kg per Cabinet Weight(500x1000mm), greatly saves transportation costs and labor costs.
Rental die-casting aluminum structure: rock solid, not easy to deform.
Seamless splicing : give you a better visual experience.
Quick lock system, easy installation : quick installation, complete the installation in a few seconds.
High refresh rate : >1,920Hz,no scanning line when photographed.
High gray level and High resolution: 256 RGB each, display 281trillion colors, vivid and perfect video effect.
High contrast ratio : make the picture more delicate.
Wide viewing angle: Horizontal and vertical angles are 160 and 140 degrees respectively
Working status indicator available.
Lower power consumption: Average Power Consumption is 420w/m²,energy saving and environmental protection.
Color Gamut

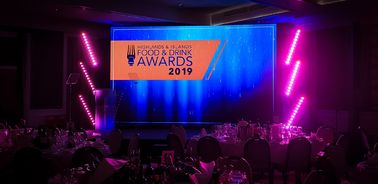

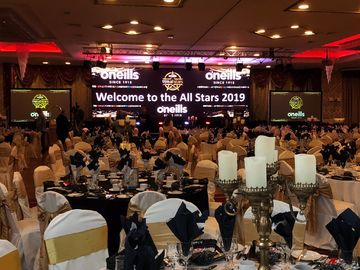

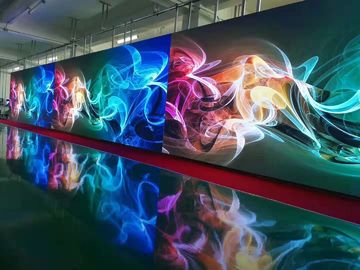

Case
Service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Packaging and Shipping
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
Why choose us?
1. Well-experienced: Bako Vision started in Shenzhen in 2005, fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens. And every sales team leader has been working in LED display industry over 14 years.
2. Quality Assurance: Equipped with multiple SMT lines and DIP lines and high-speed machines, imported from Panasonic and Samsung. Our quality management is complying with 7S and ISO9001-2000/ISO14001 product certification systems. At the same time, our products have obtained CCC, CE, ETL, RoHS, FCC, UL.
3. Capacity status: The company's monthly production capacity has reached 800 KK, take P3.91 as an example, it can produce 15,000 square meters per month.
4. After-sales support: The company has set up an after-sales service department. There are many professional technicians engaged in the engineering installation, on-site debugging and training guidance of LED display products. We participate in foreign exhibitions many times every year and we can visit you.
