Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability

Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability
Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability

Large Image :  Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CCC,CE,FCC
Model Number: Floor LED Screen

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Packaging Details: Plywood case / Flight Case
Delivery Time: 15~20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000sqm/ Month
Detailed Product Description
Panel Size: 500 X 1000mm / 500 X 500mm Physical Pitch: P3.91, P5.2, P6.25, P8.9
Contrast Ratio: 4000 : 1 Brightness: 2000nits - 4500nits
IP Rating: IP65 Weight: 20 Kg/panel
High Light:

front maintenance led display

,

outdoor full color led screen



3.91mm Indoor Dance Floor LED Screen Panel with 1.8 tons Bearing Capability





Description:



1. High Load Bearing Performance (1.8 tons/sqm)



Through the professional structural design, the high load-bearing performance of the screen is ensured, and the impact resistance is strong; after testing: the weight per square meter can bear 1.8tons, even if the car can be safely driven on the product.



2. Interactive Effect



Interactive system with inductor built in,quick response within 0.02s.



3. Standard Modular Design



Standard module design: 250mmx250mm, PC meterial mask with highly scratch-resistant.



4. Easy and Fast Installation





Tools free installation, easy maintenance after cabinets assembled.

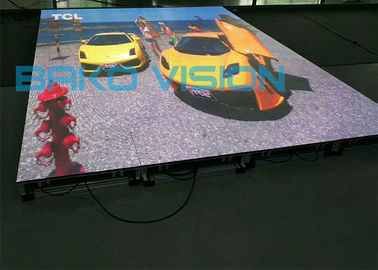

Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability 0

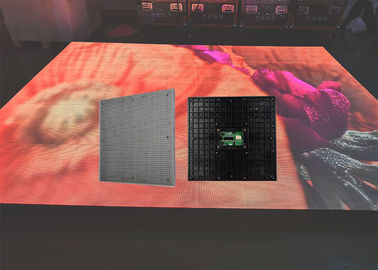

Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability 1









Parameters:





  BD-3 BD-5 BD-6 BD-8
Physical Pitch 3.91 mm 5.2 mm 6.25 mm 8.928 mm
Pixel Configuration SMD 1921 SMD 1921 SMD 2727 SMD 3528
Pixel Density 65,536 pixels/m² 36,864 pixels/m² 25,600 pixels/m² 25,600 pixels/m²
Module Dimensions (W × H) (mm) 250 × 250 250 × 250 250 × 250 250 × 250
Panel Dimensions (mm) 500 × 1000 500 × 1000 500 × 1000 500 × 1000
NO.of Modules Per Panel (W × H) 2 × 4 2 × 4 2 × 4 2 × 4
Physical Resolution of Module (W × H) 64 x 64 48 x 48 40 x 40 28 x 28
Physical Resolution of Panel (W × H) 128 x 256 96 x 192 80 x 160 56 x 112
Panel Material Aluminum Aluminum Aluminum Aluminum
Single Cabinet Weight 20 kg/panel 25 kg/panel 24 kg/panel 25 kg/panel
ray Scale 16 bit 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1
Average Power Consumption 300 W / m² 300 W / m² 300 W / m² 300 W / m²
Max Power Consumption 880 W / m² 880 W / m² 880 W / m² 880 W / m²
Operating Temp/Humidity -10℃-60℃ / 10%-60% -10℃-60℃ / 10%-60% -10℃-60℃ / 10%-60% -10℃-60℃ / 10%-60%
Storage Temp/Humidity -30℃-60℃ / 10%-60% -30℃-60℃ / 10%-60% -30℃-60℃ / 10%-60% -30℃-60℃ / 10%-60%
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Brightness 2,500 nits 2,000 nits 4,500 nits 4,500 nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing Angle 140° 140° 140° 140°
Expected Lifetime 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs
Best Viewing Distance 4m-60m 6m-60m 8m 8m
Scan Method 1 / 16 Scan 1 / 6 Scan 1 / 5 Scan 1 / 3 Scan
Servicing Front Front Front Front
IP Rating IP 65 IP 65 IP 65 IP 65

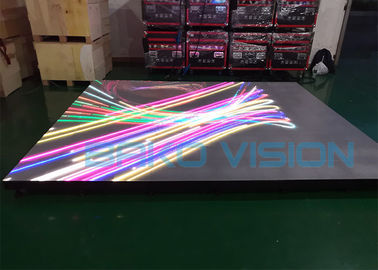

Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability 2



Application Reference:

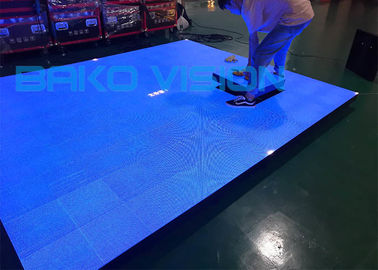

Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability 3





About Bako Vision:





Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.


BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long termpartnership with variety channel customers over 120+ countries.



Pixel 3.91mm Indoor Dance Floor LED Screen Panel 1.8 Tons Bearing Capability 4





Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.


In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.


After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
