Product Details:
Payment & Shipping Terms:
|
| Panel Size: | 571mm× 1897mm | Panel Thickness: | 33mm |
|---|---|---|---|
| Refresh Rate: | 2880 ~ 3840Hz | Frame Rate: | 60 Fps |
| Bezel: | 4mm | Panel Weight: | 28kg |
| High Light: | led poster screen,mirror led display |
||

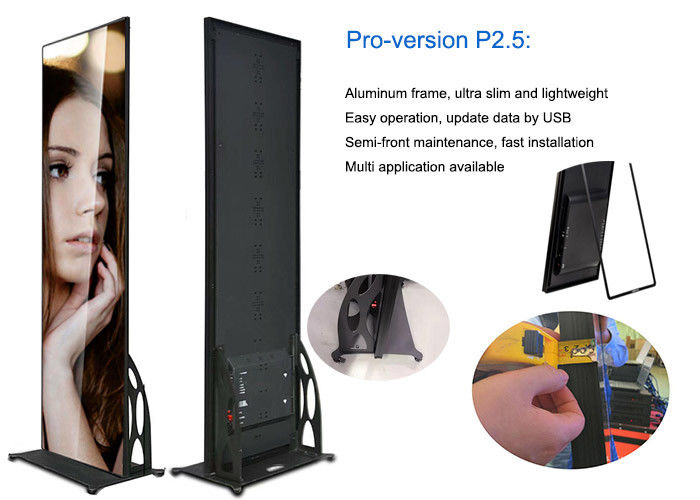

2.5mm Indoor LED Poster 3840Hz High Refresh Mobile Advertising Displays
Pixel pitch:1.9, 2.5,3.0
Refresh rate: >2880 Hz
Brightness: 1000-3500nits
Panel Dimension: 571mm*1897mm*33mm
Panel Weight: 28KG
Portable indoor advertising design, slim and lightweight, move with wheels, easy to set and move anywhere.

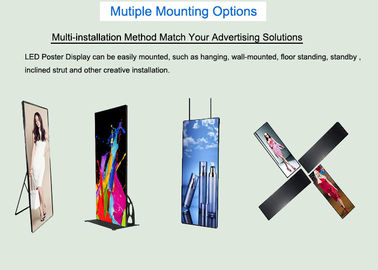

Outstanding appearance, available for base standing, hanging, wall-mounting, and splicing format. More advertising ways and help branding.
| Pixel Pitch | 1.9mm | 2.5mm | 2.5mm Pro | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 157,464pixels/m² | 110,889pixels/m² |
| Module Dimention(mm) | 160 × 160 | 160 × 160 | 280 × 210 | 192 × 192 |
| Whole Set Dimention(mm) | 640 × 1920 × 35 | 640 × 1920 × 35 | 571× 1897 × 33 | 574 × 1928 × 35 |
| NO.of Modules Per Panel | 4 × 12 | 2 × 9 | 2 × 9 | 2 × 9 |
| Resolution of Module | 84 x 84 | 64× 64 | 108× 81 | 64 × 64 |
| Resolution of Whole Set | 336 × 1,010 | 256 × 768 | 216 × 729 | 192× 640 |
| Panel Material | Aluminum | |||
| Cabinet Weight | 32 kg | 32 kg | 28 kg | 32 kg |
| Gray Level | 16 bit(281 trillion colors) | |||
| Contrast Ratio | 4000 : 1 | |||
| Average Power Consumption | 250W/Set | 200W/Set | 100 W/ Set | 200 W/ Set |
| Max Power Consumption | 750W/Set | 600W/Set | 390 W / Set | 600 W / Set |
| Driving Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Brightness | >1,000 nits | >1,000 nits | >1,000/3500 nits | >1,000 nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz | ≥3,840 Hz | ≥2,880 Hz |
| Viewing Angle(V/H) | 160°/ 140° | |||
| Frame Rate | 60 fps | |||
| Operating Temp/Humidity | -10℃~60℃ / 10%~60% | |||
| Storage Temp/Humidity | -30℃~60℃ / 10%~60% | |||
| IP Rating(Front/Rear) | IP40 | |||
| Expected Lifetime | 100,000 Hrs | |||
| Bezel | 6mm | 6mm | 4mm | 6mm |

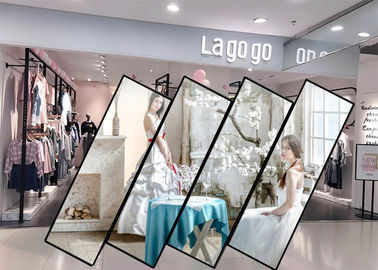

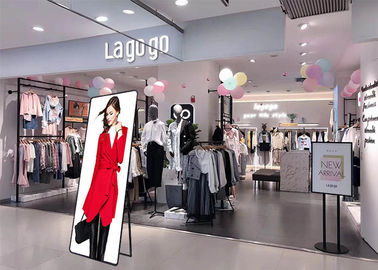

Case Reference:
About us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our avantages:
The unit price depends on the quantity, we can offer you at a competitive price.
Your inquiry related to our products or prices will be replied in 24hours.
Well-trained and experienced staffs to answer all your enquiry regarding products.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
Tips:
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:15-20 days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
