Product Details:
Payment & Shipping Terms:
|
| Panel Dimensions (Wxh)(mm): | 1000*500 | Contrast Ratio: | 2000:1 |
|---|---|---|---|
| Viewing Angle: | V:140 Degree / H: 160 Degree | Operating Temp/ Humidity: | -30ºC-60ºC/10%-90% |
| Average Power: | 240W/M² | Driving IC: | MY9866 QFN |
| Transparency: | 60%-80% | Serving: | Front |
| Expected Lifetime: | >=100,000hrs | Brightness: | 5500cd/m² |
| High Light: | clear led screen,transparent glass led display |
||
Windows Glass 60-80% Transparency Full Color High Resolution LED Display Screen
The Features of Glass transparancy Led:
1. High Stability: Use high quality components and parts and sophisticated processing technique. Products with stable quality , high reliability and long life span.
It features transparent effect up to 80% keeping the perspective function of glass. The higher transparency effect allows you to see LED light on the glass without any effect to surround of glass wall.
The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.
4. Advanced control system
Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.
5.Non-steel structure
14KG/m² lighter on structure per square meter since no steel needed when installing on the surface of building.
Specifications
| BG-2.5-7.8 | BG-10 | BG-16 | |
| Physical Pitch | 2.5*7.8mm | 10*10.4mm | 16 mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density | 50,688pixels/m² | 9216 pixels/m² | 3906pixels/m² |
| Module Dimensions(W*H)(mm) | 500*125 | 500*125 | 480*320 |
| Panel Dimensions(mm) | 1000*500 | 1000*500 | 960*640 |
| Physical Resolution of Module(W*H) | 200*16 | 48*12 | 30*20 |
| Physical Resolution of Panel(W*H) | 400*64 | 96*18 | 60*40 |
| Weight(kg/m²) | <14 kg/m² | <14 kg/m² | <14kg/m² |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Processing | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 2000:1 | 2000:1/ | 2000:1 |
| IP Rating | IP30 | IP30 | IP30 |
| Viewing Angle | H:160°,V:140° | H:160°,V:140° | H:160°,V:140° |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000 Hrs |
| Operating Temp/Humidity |
10ºC-60ºC/ 10%-60% |
-10ºC-60ºC/ 10%-60% |
-10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
| Servicing | Rear | Rear | Rear |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| Avg/Max. Power Consumption | 240/700W/m² | 140/400 W/m² | 218/650W/m² |
| Brightness | 1000-4200 nits | 1000-4200 nits | >5,500 nits |
| Scan | 1/11 | 1/2 or 1/4 Scan | Static Scan |
High Refresh Rate.
MBI 5124 Driver IC together with full receiving card loading. Make Bako Vision Led Display come with a high refresh rate. Provide a good image and a better advertise result when play Video.
Low power consumption
Power consumption would reduce half compared with others due to bright LED light with high conversion rate ,and the PFC functional power supply.
Control System
Produce line
Application

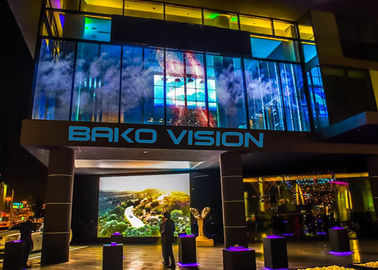

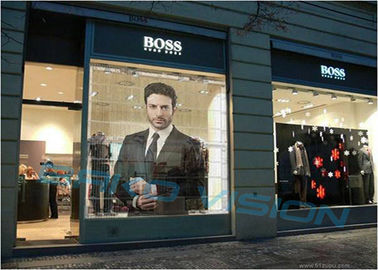

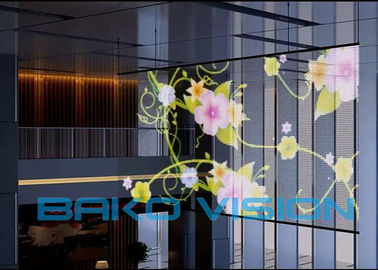

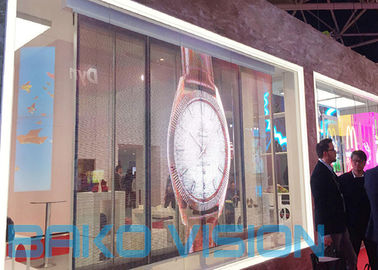

Widely use bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.
About us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Warranty
We guarantee all our displays, modules, parts for TWO years. During this time, we will replace or amend all our goods for free if there is something wrong with them.We provide lifetime maintenance service and only charge for the cost of raw materials needed. We provide technology training for free, which contains operation and maintenance training of the LED screens in the factory.We also provide operation manual software, test report and so on. Any associated CAD drawings on how to fix up the display. And some other expert suggestions will be provided for free.
