Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P2.6 P2.97 P3.91 P4.81 | Material: | Die-casting Aluminum |
|---|---|---|---|
| Contrast Ratio: | 4000 : 1 | Refresh Rate: | 1920 To 3840Hz |
| Weight: | 8 / 14kg/panel | Application: | Touring Rental, Stage Rental, Car Show |
| High Light: | indoor full color led display,led publicity screens |
||
P3.91 Indoor LED Display Rental Event Stage High Definition Screen
Features:
1. Wide Application:
Stage rental events, entertainment, indoor or outdoor environment.
2. Light Weight and thin:
Using aluminum profile material, the cabinet weight is 7kg, 80mm thickness.
3. High Contrast Ratio:
Novel design of mask,contrast ratio can reach 4000:1.
4. Quiet:
Fanless design
5. High Precision:
each cabinet of precision deviation <0.5mm.
6. High Refreshing:
Normal refresh rate 1920Hz and high driving IC 3840Hz
7. Convenient and Fast Installation.
Tools free, aeemble cabinet in 10 seconds

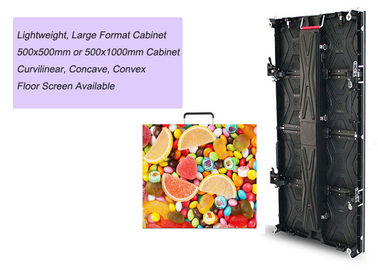

8. Best Cabinet Size:
500mm*1000mm and 500mm*500mm can be combined.
Parameters:
| Physical Pitch(mm) | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/m² | 112,896 pixels/m² | 65,536 pixels/m² |
| Module Dimensions (W × H) (mm) | 250*250 | 250*250 | 250*250 |
| Panel Dimensions (mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| No. of Modules Per Panel (W × H) | 2*2/2*4 | 2*2/2*4 | 2*2/2*4 |
| Physical Resolution of Module (W x H) | 96*96 | 84*84 | 64*64 |
| Physical Resolution of Panel (W x H) | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg / panel | 8/14 kg / panel | 8/14 kg / panel |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 400 W / m² | 400 W / m² | 325 W / m² |
| Max Power Consumption | 800 W / m² | 800 W / m² | 780 W / m² |
| Operating Temp/Humidity | -10°-60℃/10%-60% | -10°-60℃/10%-60% | -10°-60℃/10%-60% |
| Storage Temp/Humidity | -30°-60℃/10%-60% | -30°-60℃/10%-60% | -30°-60℃/10%-60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | ≥1,200nits | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan |

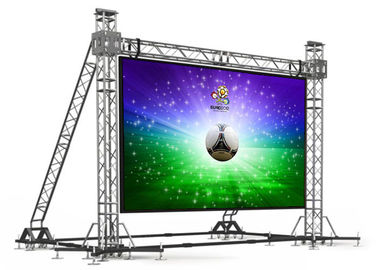

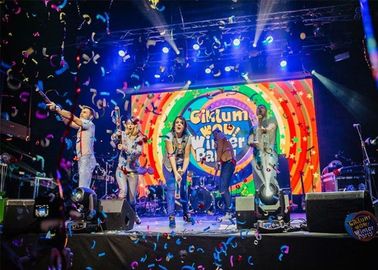

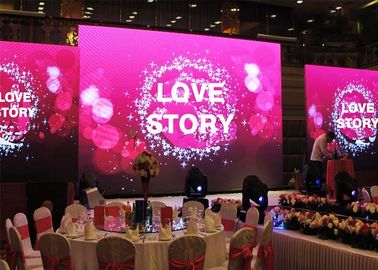

Project Reference:
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 7-10 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Abou Bako Vision:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long termpartnership with variety channel customers over 120+ countries.
