Product Details:
Payment & Shipping Terms:
|
| Module Dimensions (Wxh) (mm): | 250X250mm | Pixel Configuration: | SMD2121 |
|---|---|---|---|
| Panel Dimensions (mm): | 500X500/500X1000 | Panel Material: | Die-Casting Aluminum |
| Max Hanging: | 20/10 | Brightness: | >1,200nits |
| Package: | Flight Case | Refresh Rate: | >1920 Hz |
| High Light: | led publicity screens,indoor led billboard |
||
Main Benifits
1. 500*500/500*1000mm panel to choose.
2. Die-Casting Aluminum, good heat dissapation.
3. Curvilinear, Concave, Convex, 0°-10°degree.
4. Floor Screen Available, Fanless design.
5. Fast Lock and handle designed.
6. 80mm thickness, 7 KG per cabinet.
Features
1.Ultra-Thin,Ultra light, Aluminum frame(cabinet)-die casting aluminum housing around with bavel edge design to achieve seamless splicing.
2. Fast and front maintenance design with 5 minutes, power supply boost maintenance speed. make your LED screen business more professional and easier.
3.High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
4. Not only easy to install and dismantle, but also have cost advantages which fit for making large-scale stage background.
5.Fine and Smooth Picture
Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.
Parameter
| BIR-II-2X | BIR-II-2 | |
| Physical Pitch | 2.6mm | 2.97mm |
| Pixel Configuration | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/m² | 112,896 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 96*96 | 84*84 |
| Physical Resolution of Panel(W*H)(mm) | 192*192/192*384 | 168*168/168*336 |
| Single Cabinet Weight | 8/14kg/panel | 8/14kg/panel |
| Average Power Consumption | 400 W/panel | 400 W/panel |
| Max Power Consumption | 800 W/panel | 800 W/panel |
| Brightness | 1200 nits | 1200 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/32 Scan | 1/28 scan |
Pruduct details
The world's first golden 16:9 ratio standard cabinet, which is line with human eye pupil ratio 2K, 4k and 8k compatible.
With high refresh rate IC , the screen shows very vivid and sharp video or picture performance.
Production line
Application

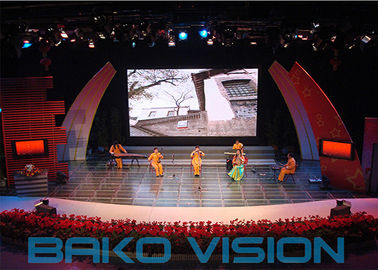

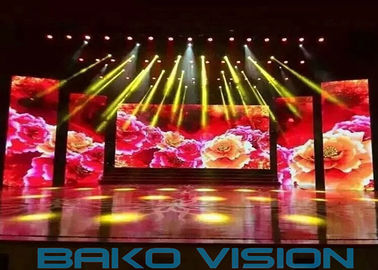

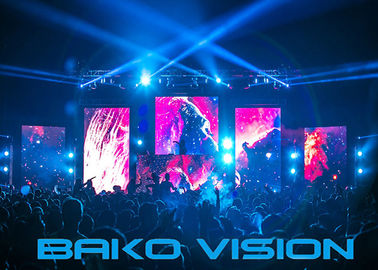

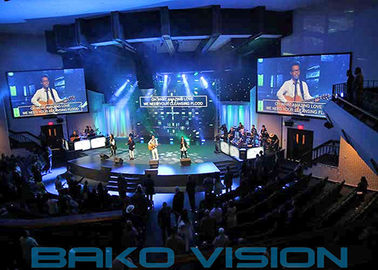

Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentation,TV station, stage show, concert and so on.
Packing/ Shipping -Flight case/ By sea or by air
Our company
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products w
ith good service for our clients.
