Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P2.97 P3.91 P4.81 | Brightness: | 1200nits |
|---|---|---|---|
| Material: | Die-casting Aluminum | Warranty: | 2 Years |
| Contrast Ratio: | 4000:1 | Refresh Rate: | 1920Hz |
| Life Span: | Above 100,000 Hours | Gray Scale: | 16bits |
| High Light: | led publicity screens,indoor led billboard |
||

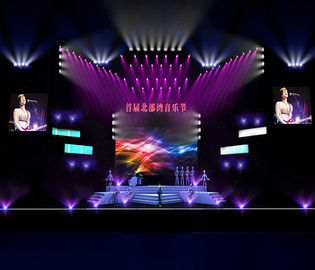

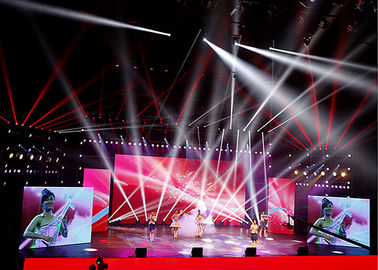

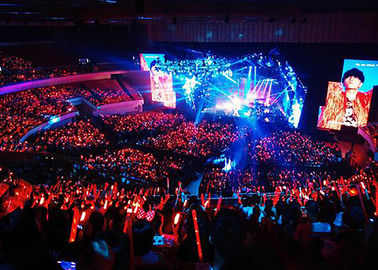

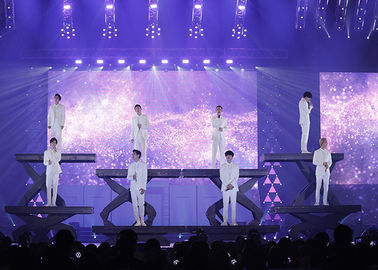

High Refresh Rate P3.91 Indoor Rental LED Display for Stage Show
Indoor Rental LED Display Features:
Strength and Beauty, Indoor Rental LED Display
TUV Certificated and Reddot Awarded
High Color Fidelity
Cable-less Connection
Front Access
Unsurpassed Color Uniformity
Unique color calibration process
Tight bin selection for LED wavelength
Deep black levels, contrast ratio 4000:1
Fast Installation and Easy Maintenance
Truss hanging and ground support both available
Cable-less between modules
Front and rear accessible
Tools free installation
Slim, Light Weight and Quiet
500mmx500mm or 500mmx1000mm cabinet,
73mm thickness,7KG per sqm
Fanless design
Superior Electrical Features
Dual signal backup port
UI LCD monitoring display indicates the status
| BIR-II-3 | BIR-II-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 |
| Pixel Density | 65,536pixels/m² | 43,264pixels/m² |
| Module Dimensions(W*H)(mm) |
250x250/ 250x500 |
250x250/ 250x500 |
| Panel Dimensions(mm) |
500x500x80/ 500x1000x80 |
500x500x80/ 500x1000x80 |
| No. Of Modules Per Panel(WxH) | 2x2 | 2x2 |
| Physical Resolution of Module(WxH) | 64x64/64x128 | 52x52/52x104 |
| Physical Resolution of Panel(WxH) | 128x128/128x256 | 104x104/104x208 |
| Panel Material | Die-casting Aluminium | |
| Single Cabinet Weight | 7/13 kg/panel | 7/13 kg/panel |
| Processing | 16 bit | 16 bit |
| Color Number | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 |
| Average Power Consumption | 60/120 W/panel | 60/120 W/panel |
| Max Power Consumption | 110/400 W/panel | 110/400 W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz |
| Driving Method | 1/32 Scan | 1/30 Scan |
| Brightness | 900~1200 nits | 900~1200 nits |
| Viewing Angle(H/V) | 160°/140° | 160°/140° |
| Expected Lifetime | ≥100,000 Hrs | ≥100,000 Hrs |
| IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 |
| Operating Temp/Humidity | -20℃-50℃/10%-90% | -20℃-50℃/10%-90% |
| Storage Temp/Humidity | -40℃-60℃/10%-85% | -40℃-60℃/10%-85% |
| Certification | CCC,TUV-CE,ETL | CCC,TUV-CE,ETL |
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
