Product Details:
Payment & Shipping Terms:
|
| Cabinet Material: | Die-casting Aluminum | Panel Dimention: | 500*500/500*1000 |
|---|---|---|---|
| Brightness: | >1,200nits | Contrast Ratio: | 4000:1 |
| Usage: | Indoor,Advertising | Tube Chip Color: | Full Color |
| Warranty: | 2 Years | Module Size: | 250x250mm |
| High Light: | indoor full color led display,indoor led billboard |
||
LED Display Screen Full Color Rental Module for Advertising/Show LED Display Board Indoor Panel Screen
Rental Led Display Specification5-Indoor rental led display.pdf
| BIR-II-2X | BIR-II-2 | BIR-II-3 | BIR-II-4 | |
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/sqm | 112,896 pixels/sqm | 65,536 pixels/sqm | 43,264 pixels/sqm |
| Module Dimensions (W*H)(mm) | 250*250 | |||
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | |||
| Physical Resolution of Module(W*H) | 96*96 | 84*84 | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H) | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 8/14kg/panel | |||
| Processing | 16 bit | |||
| Colours | 281 trillion | |||
| Contrast Ratio | 4,000:1 | |||
| Average Power Consumption | 64/128W/panel | |||
| Max Power Consumption | 192//384W/panel | |||
| Refresh Rate | >1,920Hz | |||
| Brightness | >1,200nits | |||
| Horizontal Viewing Angle | 160° | |||
| Vertical Viewing Angle | 140° | |||
| Max Staking | 20/10 | |||
| Max Hanging | 20/10 | |||
| Servicing | Front/Rear | |||
| IP Rating (Front/Rear) | IP40/IP21 | |||
Product Introduction
1.SMD 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving.
2. Die-casting Aluminum material cabinet with slim thickness of 80mm ensure light weight, only 8kgs per panel, can be picked up by one hand, easy to install and dismantle, better for rental use.
3. Panel size can be 500x500mm or 500x1000mm,better for different screen sizes,and combine random.
4. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar.
5. Dot to dot maintenance, quick maintain and save cost.
6.No fans design, no noise caused, good environment protection.
7. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.
8.Can make curvilinear,concave,convex.
Advantages:
Truss hanging and ground support are available
Fast lock and handle designed user friendly
Front and rear access
Tools free installation
Floor screen available
Durable PC mask and adjustable foot bracket are ready
Interactive effect and radar inregration are optional
Both 500*500mm and 500*1000mm are arc-able
0°-10° concave and convex degree
Training Services
Led display manufacturer training content
- Computer basics
- WINDOWS operation
- Display system working principle
- System operation and management
- Daily maintenance and safety precautions for the system
LED display expert on-site training:
On-site training is carried out together during the installation and commissioning of the system, and the operators of the system are required to participate in the installation and debugging of the system hardware and software. The main contents of the training include:
System software installation
- Display routine maintenance of information
- Simple software troubleshooting
- Simple hardware troubleshooting

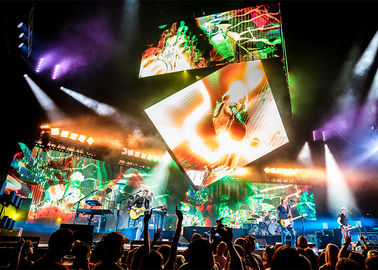

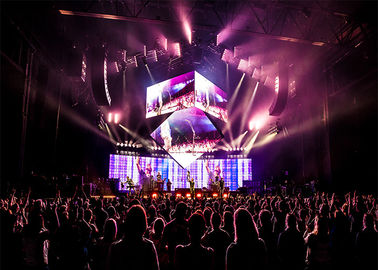

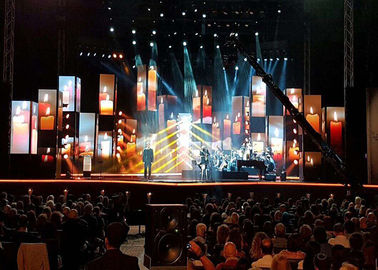

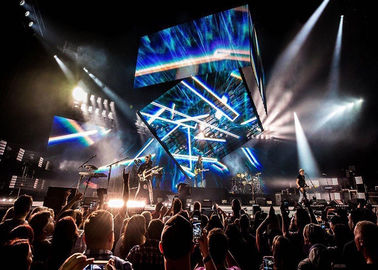

Case
FAQ
Q1: The warranty of your LED Display Board ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.
Q3: What's the controlling system?
Packaging and Shipping
About Us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
