4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show
4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show

Large Image :  4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CC.UL,ETL
Model Number: BOR Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case / Plywood case
Delivery Time: 15-25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 8000square meter per month
Detailed Product Description
Pixel Pitch: 4.81mm Pixel Density: 43,264 Dots/㎡
Cabinet Size: 500 X 1000 X 80mm Life Span: 100000hours
Refresh Rate: 1920Hz Certification: CE,UL,FCC,ISO9001
High Light:

led rental display

,

outdoor led screen hire

P4.81 Factory Price Outdoor LED Video Display Screen Panel Wall LED Tvs Full Color for Stage Event Live Show



P4.81 Digital Led Display Screen Features and Advantages:

  • Curved angle : ±10° adjustable, creative design to meet your requirement;
  • Panel Size: The Panel size is 500 x 500mm and 500 x 1000mm, there can make the screen size as : 4*3m ,6*4m,9*5m etc . It is suitable for 4:3 ,16:9 ratio ;Also you can adjust the screen size free as your wish.
  • High brightness: More than 6000nits
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
  • Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • 2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.
  • High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;




P4.81 Digital Led Display Screen Specification

Physical Pitch 4.81mm
Pixel Configuration SMD2727
Pixel Density 43,264 pixels/Sqm
Module Dimensions(W x H) (mm) 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80
Physical Resolution of Panel (W x H) 104 x 104 / 104 x 208
Panel Material Die-Casting Aluminum
Single Cabinet Weight 9 / 15 kg/panel
Processing 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 75 /150 W /panel
Max Power Consumption 225 /550 W /panel
Operating Temp/Humidity -20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz
Brightness ≥6,000nits
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54

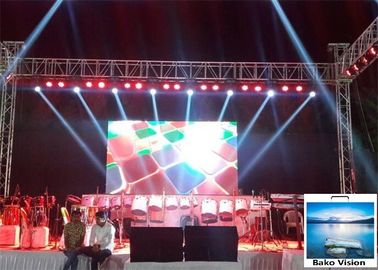

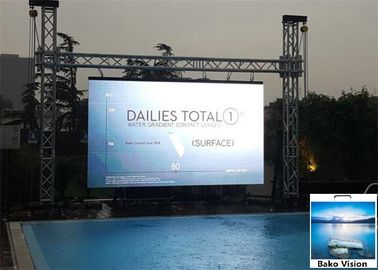

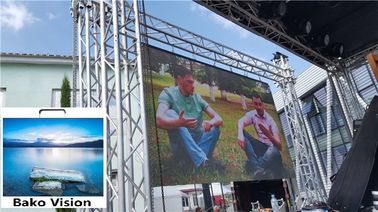

P4.81 Digital Led Display Screen Case



4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 0
4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 1

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 2

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 3

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 4

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 5

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 6

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 7

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 8

4.81mm Pixel Pitch Outdoor Led Video Display Board For Stage Event Live Show 9
