Product Details:
Payment & Shipping Terms:
|
| Tube Chip Color: | Full Color | Usage: | Indoor |
|---|---|---|---|
| Warranty: | 2 Years | Panel Material: | Die-casting Aluminum |
| Life Span: | 100000hours | Module Size: | 240mm*240mm |
| Contrast Ratio: | 4,000:1 | Single Cabinet Weight: | 7 Kg/panel |
| High Light: | led video wall display,indoor led advertising scree |
||
Full Color Indoor Fixed LED Display Screen Die Casting Aluminum 2 Years Warranty (BHD.pdf)
Full color indoor led display has high brightness and adjustable contrast. This model has a good lighting accordance and has no mosaic.
Indoor LED display has larging view angle, it also has a better viewing effect for text, graphic and video ects, any LED in each pixel can be respectively repaired.
Computer VGA indoor display with real-time synchronization output, and applies to all types of Internet connections with the media to transmit real-time information.
Led screens have brightness strong, static driving scan mode, larger power-driven.
Indoor Fixed LED Display Parameters
| BHD-1.5 | BHD-1.6 | BHD-1.8 | BHD-2.5 | BHD-3 | |
| Physical Pitch | 1.579 mm | 1.667 mm | 1.875mm | 2.5mm | 3mm |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD2121 | SMD2121 |
| Pixel Density | 401,110 pixels/sqm | 360,000 pixels/sqm | 284,444 pixels/sqm | 160,000 pixels/sqm | 111,110 pixels/sqm |
| Module Dimensions(W*H)(mm) | 240*240 | 240*240 | 240*240 | 240*240 | 240*240 |
| Panel Dimensions(mm) | 480*480*80 | 480*480*80 | 480*480*80 | 480*480*80 | 480*480*80 |
| Physical Resolution of Panel(W*H) | 304*304 | 288*288 | 256*256 | 192*192 | 160*160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 258 W/panel | 264 W/panel | 260 W/panel | 215 W/panel | 235 W/panel |
| Max Power Consumption | 715 W/panel | 680 W/panel | 690 W/panel | 640 W/panel | 670 W/panel |
| Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
| Brightness | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |

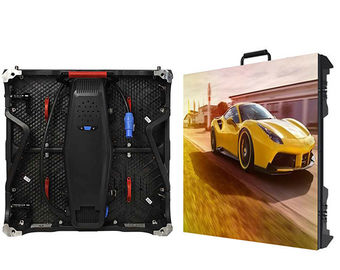

Indoor LED Screen Details
Die-casting aluminum cabinet size: 480*480*80mm weight: 7 KG
Fan-less design
ensures a noiseless LED screen,making it suitable for the high-level applications.
No flat & power cable on module
Everything is connected with pin type socket.
Calble free design makes it fast for installation and stable in data/power transmission.
Convenient and strong Locks
Quick locks provide easy installation,
which can reduce the cost and time of installation.
cat-6 data cable connection ensures stable data transmission
Seamless connection
The cabinet precision is 0.05mm to make sure of seamless connection.
Both front and rear service
front service makes it easy to install the display onto the wall.
High contrast ratio, high refresh rate and gray scale
make it possible for high level occasions like TV station.

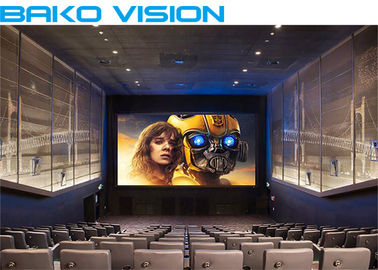

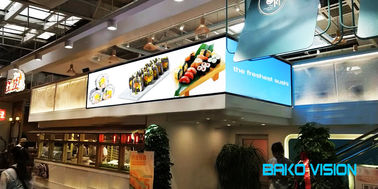

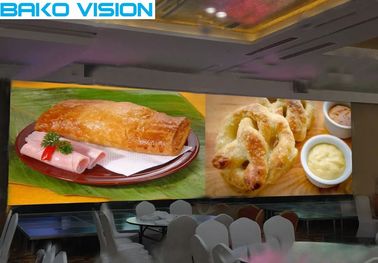

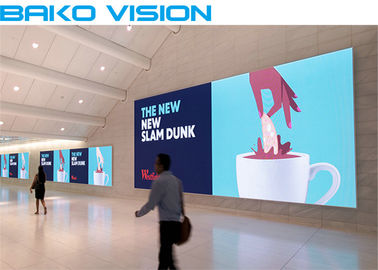

Indoor Video Wall New Cases
Our Advantages
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality: All products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
Service
BAKO has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Packaging and Shipping
About Us
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
