See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits

See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits
See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits

Large Image :  See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CCC,CE,ETL,FCC
Model Number: BG

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: 500~1600US$/sqm
Packaging Details: Plywood case / Flight Case
Delivery Time: 10~15 wds
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000sqm/ Month
Detailed Product Description
Module Size: 480mm X 320mm Panel Size: Customized
Weight: 10kg/ Sqm Refresh Rate: 1920 Hz
Brightness: 5500 Nits Control System: Nationstar
High Light:

clear led screen

,

see through led screens



80% Transparency See Through LED Screen , High Brightness Store Video Wall





Features:





1. Good visualization

Glassbased design allows the light to pass through the glass without any influence to the building

structure around.Transparency of the glass screen can up to 80%.



2. Ultra-thin, and ultra-light.

Thickness 35mm and 10 kg per sqm.

High brightness, and high definition.

The brightness is over 5500 nits/m2.



3. Easy and convenient maintenance.

Repairing single SMD without taking of single module or entire panel.



4. table and Reliable

Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.



5. Wide use range.

Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater,

business street, elevator, hotel and coffee house, etc.



6. High transparency.

High transparency with 60%~80% for front and back. Perfect cabinet design for special application.





7. Delicate structure

The cabinet is designed with delicate structure and the the cabinet is ultra thin, ultra light and strong. the tickness is only 40mm thickness.





8. Fast lock design,easy installation.

With fast lock design, allows for easy assembly and disassembly. It is very easy for cabinet connection in just a few seconds.



See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits 0





See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits 1



Parameters:



Pixel Pitch 3.75x6.67mm 3.75x8mm 5x6.67mm 5x8mm
Pixel Configuration SMD 1921 SMD 1921 SMD 3528 SMD 3528
Pixel Density 39,900 pixls/m² 33,250 pixls/m² 30,000 pixls/m² 25,000 pixls/m²
Module Dimension 480 x 320 mm
Panel Dimention 960 x640 mm
Resolution of Module 128 x48 128 x 40 96 x 48 96 x 40
Panel Material Aluminum
Weight 11 kg/m² 10.2 kg/m² 10 kg/m² 9.5 kg/m²
Gray Scale 16 bits(281 trillion colors)
Conntrast Ratio 2000 : 1
Average ower Consumption 207 W/sqm 201 W/sqm 209 W/sqm 203 W/sqm
Max ower Consumption 690 W/sqm 670 W/sqm 696 W/sqm 670 W/sqm
Refresh Rate 1920 Hz
Brightness 5500 nits
Expected Lifetime 100,000 Hrs
IP Rating(front/rear) IP30
Servicing Rear
Certification

CCC,CE,ETL,FCC

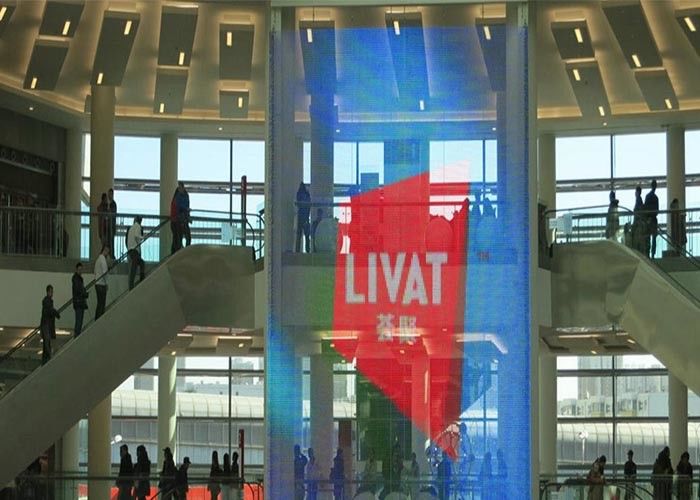

 Where can we use it?





See Through Transparent LED Screens High Brightness Store Video Wall 5500 Nits 2





About Our Company:



Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.



BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.



BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
