HD Soft Module Flexible Led Screen Display P2.5 Slim Rubber Creactive Installation

HD Soft Module Flexible Led Screen Display P2.5 Slim Rubber Creactive Installation
HD Soft Module Flexible Led Screen Display P2.5 Slim Rubber Creactive Installation HD Soft Module Flexible Led Screen Display P2.5 Slim Rubber Creactive Installation HD Soft Module Flexible Led Screen Display P2.5 Slim Rubber Creactive Installation

Large Image :  HD Soft Module Flexible Led Screen Display P2.5 Slim Rubber Creactive Installation

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE,FCC,RoHS
Model Number: BS

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Packaging Details: Plywood case / Flight Case
Delivery Time: 10~15 wds
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000sqm/ Month
Detailed Product Description
Weight: 8.2kg/m² Average Power Consumption: 10 W
Refresh Rate: 1920 Hz Servicing: Front
Gray Level: 16bit IP Rating: IP40
High Light:

foldable led screen

,

soft led screen



HD Soft Module Flexible LED Display P2.5 Slim Rubber Creactive Installation







Module can be bent, can be used for the surface of the arc place, that can be inward arc, but also can be outward the arc, use of flexible.
flexible led screen adopt magnet pole directly adsorbed on the cabinet, It can be front and back maintenance, greatly facilitate the installation.



Features:



1. Durable soft rubber module,anti-static electricity

2. Integrated SMD,IC,Circuit for easy maintenance and heat dissipation

3. For any convex,concave or twisted installtions

4. Customized pixel oitches available for variable installations

5. Magnetic connection for easy installation and maintenance



HD Soft Module Flexible Led Screen Display P2.5 Slim Rubber Creactive Installation 0





Parameters:



Physical Pitch 2.5 mm 3.0 mm 4.0 mm 6.66 mm
Pixel Configuration SMD 2121 SMD 3528
Pixel Density 160,000 pixels/m² 111,111 pixels/m² 62,500 pixels/m² 22,545 pixels/m²
Module Dimentions 240 x 120 mm 320 x 160 mm
Panel Dimentions customized
Resolution of Module 96 x 48 80 x 40 60 x 30 48 x 24
Weight 8.2 kg/m²
Gray Level 16 bit(281 trillion colors)
Contrast Ratio 4000 : 1 2000 : 1
Average Power Consumption 9 Watt 10 Watt
Max Power Consumption 12 Watt 13 Watt
Brightness 1000 nits 1500 nits
Refresh Rate 1920 Hz
Driving Method 1/40 scan 1/48 scan
Horizontal Viewing Angle 160 degree
Vertical Viewing Angle 140 degree
Expected Lifetime 100,000 Hrs
Servicing Front
IP Rating(Front/Rear) IP 40
Certification CE,FCC,RoHS
Sperating Temp/Humidity -20~60℃/10%~90%
Storage Temp/Humidity -40~80℃/10%~90%

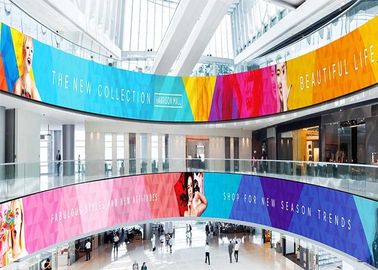

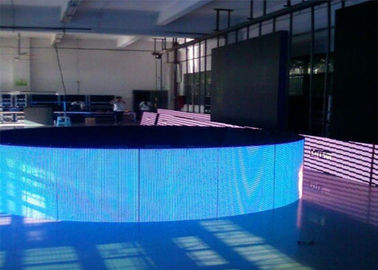

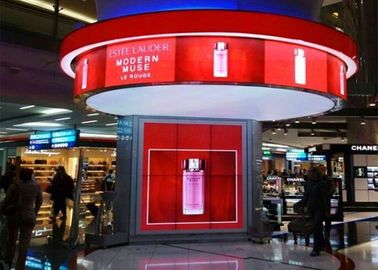

solutions:



HD Soft Module Flexible Led Screen Display P2.5 Slim Rubber Creactive Installation 1




FAQ

1)Q: How to choose a proper led screen for your need?


A: You just need to consider three simple questions when you choose a led screen.
1.Will you use it indoor or outdoor?
2.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?
3.What is the approximate size of the whole led screen you would like to purchase?

2)Q: How to install it after I received it?


A: We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.

3)Q: How could I buy the products I need if there is no price in the website and could I get some samples first?


A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.

4)Q: I would like to ask you if it's possible to have my logo on the product.


A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
