Full Color Flexible Led Curtain Display High Level With Nova Control System

Full Color Flexible Led Curtain Display High Level With Nova Control System
Full Color Flexible Led Curtain Display High Level With Nova Control System Full Color Flexible Led Curtain Display High Level With Nova Control System Full Color Flexible Led Curtain Display High Level With Nova Control System Full Color Flexible Led Curtain Display High Level With Nova Control System

Large Image :  Full Color Flexible Led Curtain Display High Level With Nova Control System

Product Details:

Place of Origin: CHINA
Brand Name: Bako Vision
Certification: CE, ETL, CCC, FCC, TUV
Model Number: BOC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sqm
Price: Negotiate
Packaging Details: Wooden case/ Flight case
Delivery Time: Within 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000sqm/month
Detailed Product Description
Unite Size (W*H)(mm):: >=1500*250 Physical Resolutio:: 60*10
Material: Aluminum IP Rating(Front/ Rear):: IP67
Lamp: Nationstar , Kinglight Matching System Card: Nova Star, Colorlight, Linsn
Control Way: Synchronous Or Asynchronous Brightness:: >6,500 Nits
High Light:

led mesh screen

,

flexible led video curtain

IP67 Waterproof LED Curtain Video Wall OEM / ODM Available for Shopping Mall



Features



1. High Transparency, High Brightness, Outdoor Curtain LED Display

20-80% transparency rate, see through, suitable for glass wall mounting

>6500 nits brightness, for all outdoor environment

Vivid colors


2. Lower Power Consumption

Only 50% power consumption comparing to conventional displays

Special LED selected and high efficiency power supply selected


3. Ultra lightweight and slim

10-18 kg/m² gross weight

Easy to install and save installation space



4. High brightness for outdoor fixed installation

Both front and rear accessible for maintenance

Steel frame is canceled during installation
​​​​​​​

5. Stable and reliable
Patented technology of inlaying SMD into PCB, the stability is much better than other similar products in the market.





Specifications



  BOC-25
Physical Pitch 25mm
Pixel Configuration 1R1G1B
Pixel Density                                 1600 pixels/m²
Unite Size (W*H)(mm) >=1500*250
Weight(kg/m²) 15 kg/m²
Physical Resolution of Unit (H*V) 60*10
Colors 281 trillion
Processing 16 bit
Contrast Ratio 2000:1
IP Rating IP67
Viewing Angle H:120°,V:60°
Panel Material Alumium
Expected Lifetime                                   100,000Hrs
Operating Temp/Humidity                          -30ºC-60ºC/10%-90%
Storage Temp/Humidity                                -40ºC-85ºC/10%-95%
Avg/Max Power Consumption 150/450 /W/m²
Servicing Front / Rear
Refresh Rate >3840 Hz
Brightness >5,000 nits

Proucts detail

Replace LED mosaic wall and DLP projection splicing products, for customers have listened to information dissemination, brand advertising, advertising effects, etc . Aspect of high quality display services.



If you want to know about that how to install the curtain led display, pls click the picture as follow and then you will get the video↓↓↓↓↓↓



Full Color Flexible Led Curtain Display High Level With Nova Control System 0



BOC Series

High Transparency, High Brightness, Outdoor Curtain LED Display

Ultra lightweight and slim

High brightness for outdoor fixed installation High transparency



Full Color Flexible Led Curtain Display High Level With Nova Control System 1



 Full Color Flexible Led Curtain Display High Level With Nova Control System 2




Wide applications

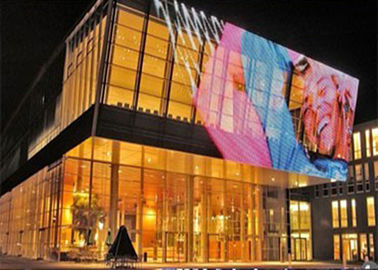

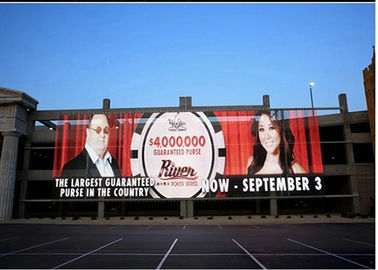

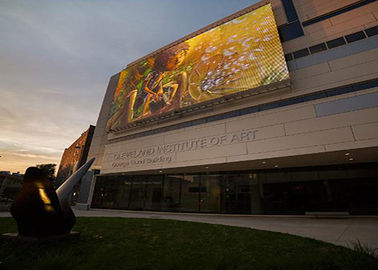

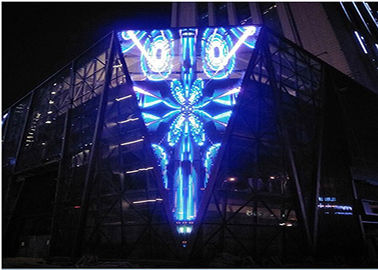

Any building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.



Full Color Flexible Led Curtain Display High Level With Nova Control System 3





About us



Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.



Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.



 Full Color Flexible Led Curtain Display High Level With Nova Control System 4





Tips



* Package: Wooden package, Flight case.

* Shipment:By road,sea and air

* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
