| Refresh Rate: | 2880 Hz | Contrast Ratio: | 4000 : 1 |
|---|---|---|---|
| Module Size: | 280mm X 210mm | Cabinet Size: | 576 X 1920 X 33mm |
| Grey Scale: | 16 Bit | Control System: | Novastar |
| High Light: | mirror led display,led poster display |
||

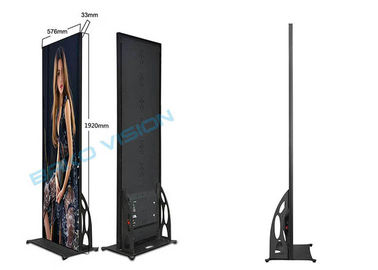

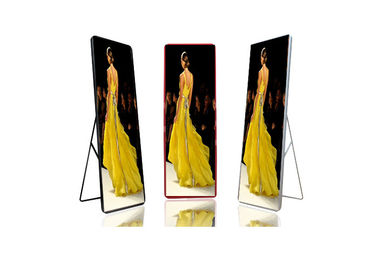

1920 x 576mm Indoor LED Poster Display Advertising Board with P2.5 P3.0
Features:
1. Intelligent Control
Support 3/4G,wifi,USB,etc.
2. Supper Lightweight and Slim
Panel weight 28kg only,33mm thick and slim edge 4mm,facilitately mobile billboard.
3. Wonderful Visual Effect
Fine pitch P1.9 , P2.5 and P3.0,4000:1 contrast ratio,16bit high grey level,2880Hz high refresh,offering supper vivid advertising image.
Parameters:
| Pixel Pitch | 1.9mm | 2.5mm | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 110,889pixels/m² |
| Module Dimention | 160mm x 160mm | 280mm x 210mm | 192mm x 192mm |
| Whole Set Dimention | 640 x 1920 x 33mm | 568 x 1898 x 33mm | 576 x 1920 x 33mm |
| Resolution of Module | 84 x 84 | 112 x 84 | 64 x 64 |
| Panel Material | Aluminum | ||
| Cabinet Weight | 27 kg~32 kg | ||
| Gray Level | 16 bit(281 trillion colors) | ||
| Contrast Ratio | 4000 : 1 | ||
| Average Power Consumption | 250W/Set | 200W/Set | 200W/Set |
| Max Power Consumption | 750W/Set | 600W/Set | 600W/Set |
| Driving Method | 1/32 Dynamic Scan | ||
| Brightness | 1000 nits | ||
| Refresh Rate | 2880 Hz | ||
| Viewing Angle(V/H) | 160°/ 140° | ||
| Frame Rate | 60 fps | ||
| Operating Temp/Humidity | -10ºC~60ºC / 10%~60% | ||
| Storage Temp/Humidity | -30ºC~60ºC / 10%~60% | ||
| IP Rating(Front/Rear) | IP40 | ||
| Expected Lifetime | 100,000 Hrs | ||
| Servicing | Rear | ||
Cases:
FAQ
Q1. Do you provide samples?Is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone,Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-3 years warranty to our products.
Why choose us?
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
