High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising

High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising
High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising

Large Image :  High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC CCC
Model Number: BOF Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case or flight case
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm/month
Detailed Product Description
LEDs: Nationstar Pannel Material: Steel/Aluminum
Servicing: Front/Rear Viewing Angle: 160°/140°
Refresh Rate: >1920Hz Contrast Ratio: 2000:1
Brightness: >6500nits IP Rating(Front/Rear): IP65/IP54
High Light:

roadside led display

,

street led screen

Waterproof IP65 P8mm P10mm Front Service Outdoor Fixed LED Display for Advertising


Quick Details:
1, Pixel Pitch: 8mm.10mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: 1280 x 768 x 150mm, cabinet weight:40kg.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 6m.

Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm,8mm, 10mm, 16mm, within these pixels, 4.81mm,6.67mm,8mm are the most hot-selling and highest cost-effective series.

Application:
Bako Vision outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on.

Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.

3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5,
±10° adjustable, creative design to meet your requirement;
High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising 0

Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.


Specification

  BOF-8 BOF-10
Physical Pitch 8mm 10mm
Pixel Configuration SMD3535 SMD3535
Pixel Density 15,625 pixels/Sqm 10,000 pixels/Sqm
Module Dimensions(W x H) (mm) 256 x 256 320 x 320
Panel Dimensions (mm) 1280 x 768 x 150 1280 x 960 x 150
NO. of Modules Per Panel (W x H) 5 x 3 4 x 3
Physical Resolution of Module (W x H) 32 x 32 32 x 32
Physical Resolution of Panel (W x H) 160 x 96 128 x 96
Panel Material Steal / Aluminum Steal / Aluminum
Weight (kg/Sqm) 65 / 45 65 / 45
Processing 16bit 16bit
Colours 281 trillion 281 trillion
Contrast Ratio 2,000 : 1 2,000 : 1
Average Power Consumption 360 W /panel 360 W /panel
Max Power Consumption 900 W /panel 900 W /panel
Brightness >6,500 nits >6,500 nits
Refresh Rate >1,920 Hz >1,920 Hz
Vertical Viewing Angle 160° 160°
Horizontal Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Servicing Front / Rear Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54 IP 65 / IP 54
Operating Temp/Humidity -20ºC - 50ºC / 10ºC - 90ºC -20ºC - 50ºC / 10ºC - 90ºC
Storage Temp/Humidity -20ºC - 50ºC / 10ºC - 90ºC -20ºC - 50ºC / 10ºC - 90ºC

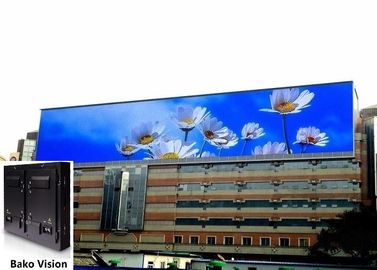

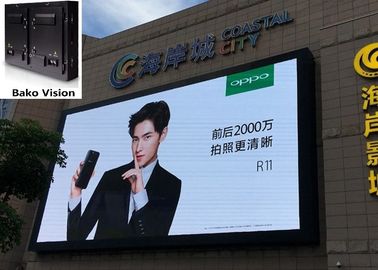

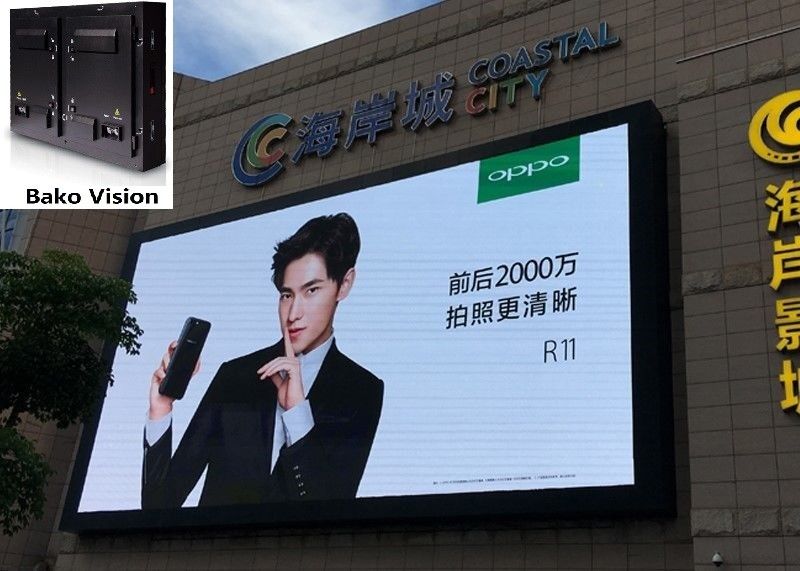

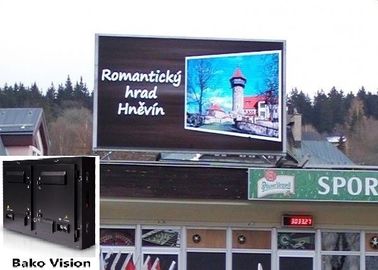

Case



High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising 1


Installation procedures



High Definition Small Pixel Pitch Led Display P8mm P10mm Waterproof For Advertising 2

1. Are you trading company or manufacturer?
We are a professional led screen manufacturer located in Shenzhen since 2005.



2. How to payment?

We accept the L/C, T/T.



3. What is the packing method?

We usually use plywood case or flight case.



4. How about the delivery time?

We will ship within 15-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.



5. Do you provide samples ? Is it free or extra?

We provide samples if you need, but the customers have to pay the sample cost and the courier cost.



6. How do you ship the goods?

We usually ship by DHL, UPS, FedEx or TNT. In addition, Airline and sea shipping also optional.



Our services

Pre-producing

  • Get complete requirements of clients.
  • To do a thorough analysis.
  • Offer a most reasonable and scientific solution.
  • Customized design.

In producing

  • Producing progress updating for clients.
  • Particular installation CAD and design diagram for clients.

After service

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Free training for customers in factory.
  • Arrange engineer go to your place to support installation.
