Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Weight: | 8.2KG |
|---|---|---|---|
| IP Rating: | IP40 | Warranty: | 2 Years |
| Light: | Nationstar | Fodable Angle: | 360 Degree |
| Brightness: | 1000nits | Screen Size: | Customized |
| High Light: | flexible led curtain display,soft led screen |
||

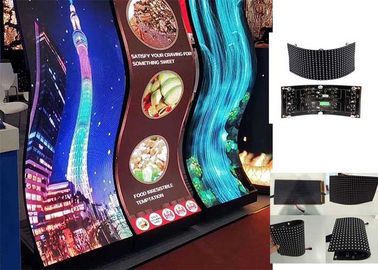

light weight P3 Flexible Led Display with module size of 24x12cm
P3 Flexible Led Display Description
1.The flex led module allow us to realize 360 degree bend designing of led display.
2.Light weight; Easy remove; Easy installation; Clear picture without flicker and distortion
P3 Flexible Led Display Parameters:
| Pixel Pitch | P2 | P2.5 | P3 | P4 | |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD2121 | |
| Module Size | 240*120 | ||||
| Module Resolution | 120*60 | 96*48 | 80*40 | 60*30 | |
| Cabinet Weight | 8.2kg/sqm | ||||
| Pixel Density | 250,000 pixels/sqm | 160,000 pixels/sqm | 111,111 pixels/sqm | 62,500 pixels/sqm | |
| Gray Scale | 16bit | ||||
| Contrast Ratio | 4000:1 | ||||
| Brightness | ＞1000 nits | ||||
| Driving Method | 1/40 | 1/40 | 1/40 | 1/8 | |
| Refresh Rate | ＞1920Hz | ||||
| IP Rating | IP40 | ||||
| Average Power Consumption(W/sqm) | 9w/sqm | 9w/sqm | 10w/sqm | 10w/sqm | |
| Maximum Power Consumption(W/Sqm) | 12w/sqm | 12w/sqm | 13w/sqm | 13w/sqm | |
| Servicing | Front | ||||
| IP Rating | IP40 | ||||
P3 Flexible Led Display Features:
1. Size 240*120mm
2. Pitch 10mm
3. Indoor application
4. 360degree band, concave & convex design both possible.
5. Front service
Company Introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
