Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Brightness: | 5500nits |
|---|---|---|---|
| IP Rating: | IP65 | Servicing: | Back |
| Operating Temp: | -40℃~75℃ | Contrast Ratio: | 4000 : 1 |
| High Light: | led digital billboard,outdoor led billboard |
||
Double Sided Digital Mobile Billboard 4000 : 1 Resolution Taxi Advertising Display
Parameters:
| Pixel Pitch | 2.5mm | 3mm | 5mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2727 |
| Pixel Density | 160,000pixels/m² | 111,111pixels/m² | 40,000pixels/m² |
| Moduel Demensions(mm) | 160x160 | 192x196 | 160x160 |
| Screen Size(mm) | 960x320 | 768x288 | 960x320 |
| Screen Resolution | 384x128 | 256x96 | 192x64 |

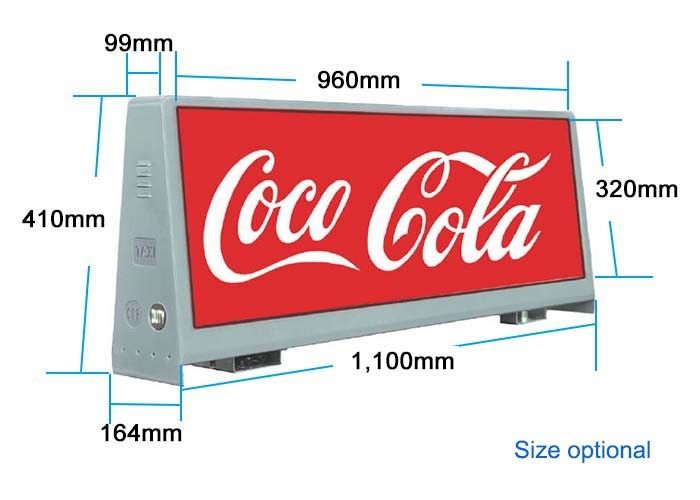

| Frame Size(mm) | 1,100(L)x410(H)164(bot)/99(top) | 820(L)x390(H)170(bot)/99(top) | 1,100(L)x410(H)164(bot)/99(top) |
| Material | Aluminum | ||
| Grey Level | 16bit | ||
| Screen Weight | 26kg | 15kg | 23kg |
| Contrast Ratio | 4000 : 1 | 4000 : 1 | 2000 : 1 |
| Brightness | 5000nits | 3500nits | 5500nits |
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 180W/set | 80W/set | 150W/set |
| Max Power Consumption | 480W/set | 250W/set | 450W/set |
| Viewing angle(H/V) | 160°/ 140° | ||
| Driving Method | 1/16 | 1/16 | 1/8 |
| Servicing | Back | ||
| Expected Lifetime | 100,000Hrs | ||
| IP Rating | IP65 | ||
| Operating Temp/Humidity | -40℃~75℃/10%~90% | ||
| Storage Temp/Humidity | -30℃~65℃/10%~60% | ||
| Certification | CE,RoHS | ||
Description:
1. High Brightness

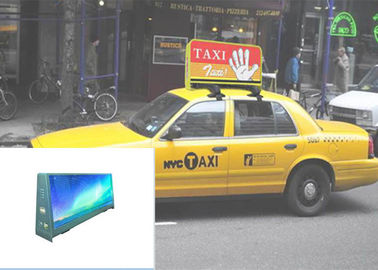

Taxi TOP LED display enable to reach 6500nit by using high intesity outdoor LEDs to make sure brighter and clear enough under the direct sunlight.
2.Easy Installation and Maintenance
Easy SD-Card installation
Easy replacement of module & power supply
3. Smart Asynchornous Control
Location Precise Advertising
3G/4G/WIFI/USB control
GPS real-time monitoring
4. Intelligent Design on Power & Heat dissipation
Lower Power Consumption of whole sign, which enable to be running on any car embedded battery system.
5. IP65
Waterproof and dustproof ensure normal working of signs in outdoor envioronmrnt.
6. Build-in Delay Protector
Prevent the screen from over-temperature,over-current,over-voltage impacting when the car starts.
Cases:
Introduction of Bako Vision:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
Our Service:
1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.
2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.
3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.
