P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen

Certification
China Shenzhen Bako Vision Technology Co., Ltd certification
China Shenzhen Bako Vision Technology Co., Ltd certification
Customer Reviews
I am very satisfied with the project of Bakovision, and I have decided to cooperate with them next time.

—— Mrs Emilia Scarlett

The production technology of Bakovision is top 5 in led display industry.

—— Mr Richard Thompson

When I visited the factory of Bakovision, I was impressed by their workshop environment.Trust Bakovision.

—— Mr Amos Aaron

The enthusiastic service from Bakovision peoples makes me feel that we are not just business partners but also friends.

—— Mrs Katherine Grady

The company are recommended by friends.They help me solved the problem.

—— Mr Baron Elvis

I am very happy to build a long-term cooperation with Bakovision. Their products have never let me down.

—— Mr Blithe Gavin

I'm Online Chat Now

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen
P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen

Large Image :  P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen

Product Details:

Place of Origin: China
Brand Name: Bako
Certification: CCC,CE,UL,ETL
Model Number: BOF Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight Case/Plywood case
Delivery Time: 15-25days
Payment Terms: L/C, D/P, T/T
Supply Ability: 8000 square meter per month
Detailed Product Description
Physical Pitch: 4.81mm Pixel Density: 43,264 Pixels/m²
Panel Dimensions: 960 X 960 X 150mm Single Cabinet Weight: 65kg
Refresh Rate: >1920Hz Brightness: >6500nits
Contrast Ratio: 2000:1 Panel Material: Steel
High Light:

roadside led display

,

outdoor waterproof led advertising panels

Waterproof Outdoor Led Billboard for Advertising and Billboard


Quick Details:
1, Pixel Pitch: 4.81mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: 960 x 960 x 150mm, weight: 65kg for steel frame.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2years.

Description:
Bako outdoor led digital billboards pixel include 4.81mm, 6.67mm, 8mm,10mm,16mm, within these pixels, 4.81mm is the most hot-selling and highest cost-effective series.

Features and Advantages:

  1. High brightness from 6,500nits to 9,000nits, visible from every direction even face to direct sunshine.
  2. SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.Image no distortion, no color cast in any angle within this range.
  3. Cabinet design lightweight, side handle for easy carrying and assemble job.
  4. IP65 waterproof and dust resistance, durable for any weather condition.
  5. Meanwell brand power supply, saving energy and high efficiency.
  6. Digital process: 16bits, contrast ratio 2,000:1, vivid color.
  7. Front access make easy maintenance.P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 0
  8. Fast lock system design guarantees a quick and easy installation.
  9. Intelligent control and player system by cloud technology.


Specification:



Physical Pitch 4.81mm
Pixel Configuration SMD2727
Pixel Density 43,264 pixels/square meter
Module Dimensions(W x H) (mm) 250 x 250
Panel Dimensions (mm) 1000 x 1000 x 150
Physical Resolution of Panel (W x H) 208 x 208
Panel Material Steal / Aluminum
Weight (kg/square meter) 65 / 45
Processing 16bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360 W /panel
Max Power Consumption 900 W /panel
Brightness >6,500 nits
Refresh Rate >1,920 Hz
Vertical Viewing Angle 160°
Horizontal Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54
Operating Temp/Humidity -20ºC - 50ºC / 10ºC - 90ºC
Storage Temp/Humidity -20ºC - 50ºC / 10ºC - 90ºC

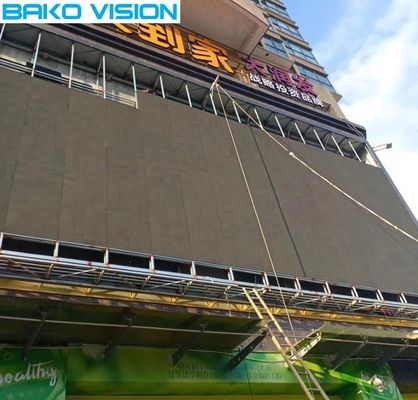

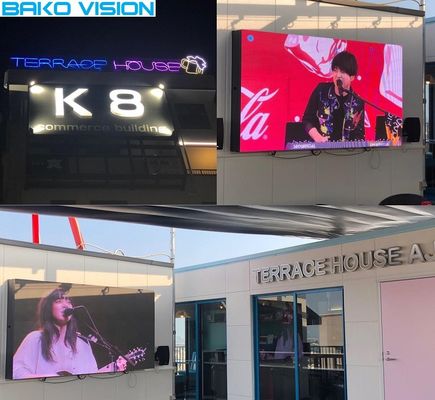

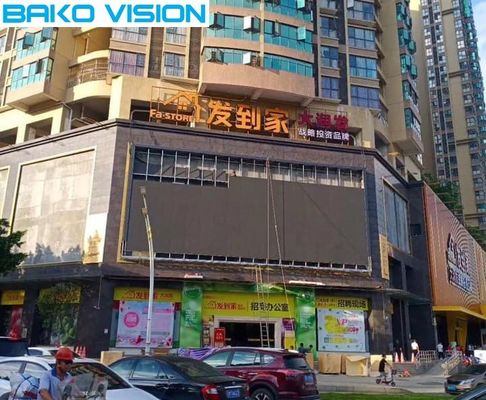

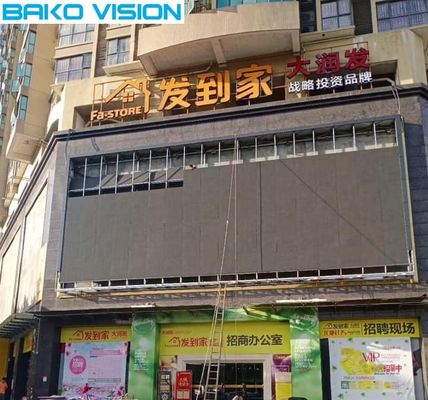

Case:


P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 1

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 2

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 3

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 4

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 5

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 6

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 7

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 8

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 9

P4.81 Nationstar lamp Front Access Waterproof Digital Outdoor LED Advertising Billboard Full Color Advertising Screen 10
