IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain

IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain
IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain

Large Image :  IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE,CCC,ETL,TUV,FCC
Model Number: BOC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: $399~999
Packaging Details: Plywood case / Flight Case
Delivery Time: 10~15 wds
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000sqm/ Month
Detailed Product Description
Refresh Rate: 3840 Hz Pixel Configuration: 1R1G1B
Brightness: 6500 Nits IP Rating: IP67
Grey Level: 16 Bit Average Power Consumption: 115w/m²
High Light:

street led screen

,

outdoor waterproof led advertising panels


IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain

Features:

1. The protection level up to IP67 and operation temperature is between -30°C and 60°C for outdoor against different weather.

2. Different shape could be combined with amazing visual effect.

3. Super thin aluminum cabinet ensure cabinet in light weight,only 8.5 to 15kgs for each.

4. High lighting penetrated design ensure good ventilation and good heat dissipation,also reduce the wind drag.

5. Can be fixed install or hung for rental, widely used for building,stage,concert,show,exhibiton and commercial advertising.

6. High brightness for outdoor and high efficiency power supply.

IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain 0

IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain 1
IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain 2

Parameters:


Pixel Pitch25mm25mm(H),35mm(V)25mm(H),50mm(V)31.25mm
LED configuration1R1G1B
Pixel Density1,600pixel/m²1,120pixel/m²800pixel/m²1,024pixel/m²
Unit Size≧1500 x 250mm
Resolution of Unit60 x 1060 x 760 x 548 x 8
Panel MaterialAluminum
Cabinet Weight15kg/m²10.6kg/m²8.5kg/m²15kg/m²
Grey Level16 bit(281 trillion colors)
Contrast Ratio2000 : 1
Average Power Consumption150w/m²115w/m²85w/m²107w/m²
Max Power Consumption450w/m²345w/m²255w/m²329w/m²
Refresh Rate3840 Hz
Brightness7500 nits6500 nits5000 nits6500 nits
Viewing Angle(H/V)120 ° / 60 °
Life Span100,000 Hours
ServicingFront / Rear
IP ratingIP67
Operating Temp/Humidity-30℃~60℃ / 10%~90%
Storage Temp/Humidity-40℃~85℃ / 10%~95%
CertificationCCC,CE,ETL,FCC,TUV

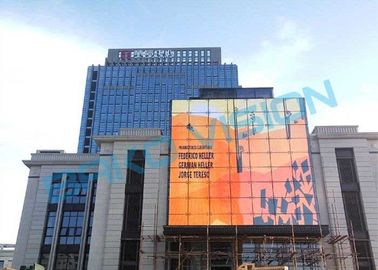

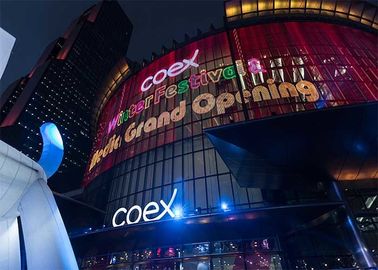

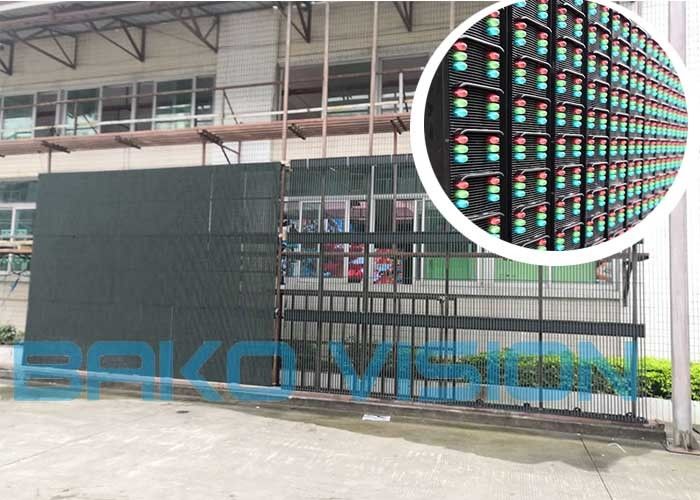

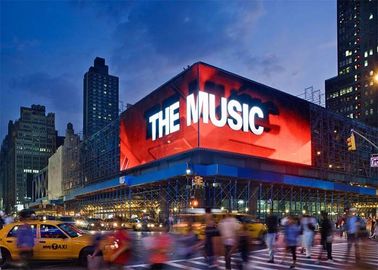

Cases:

IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain 3

About Bako Vision:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

IP67 High Brightness Outdoor Fixed LED Display Transparent Video Curtain 4

FAQ:


1. How shall I make the payment?
We accept T/T,T/C and Western Union.
2. How can I choose a proper product?
Then we need to clarify some questions firstly:
A: Where will you install this display?Outdoor or indoor/Fixed or rental?
B: How do you plan to control it?By USB or Computer?
C: What context do you want to display?

3. How do you ensure the quality?
A: We have been in LED display manufacture for more than 10 years and own our professtional team.
B: From LED to module,to cabinet,to screen and anything like power supply and control system,we have a QC team to control at every step.

C: Everytime before delivery,there will be aging testing for several days to ensure normal working.You are also welcomed to check the products in our factory.
D: We offer 2~5 years warranty and 18/7 online engineering help.
