Product Details:
Payment & Shipping Terms:
|
| Unite Size (W*H)(mm): | >=1500*250 | Physical Resolution Of Unit (H*V): | 60*7 |
|---|---|---|---|
| Viewing Angle: | V:60 Degree / H: 120 Degree | Weight: | 10.6 Kg / M² |
| Refresh Rate: | >=3,840 HZ | IP Rating(Front/ Rear): | IP67 |
| Brightness: | >6,500 Nits | Contrast Ratio: | 2000:1 |
| High Light: | led facade display,flexible led video curtain |
||
Ultra Lightweight And Slim Glass Advertising LED Video Wall For Buildings
Features and Advantages
1. High transparency
Special product design Glass Curtain led display P25mm (H), 35mm (V)
It looks like a window-shades when come near and nothing you can find if far away from it.
2. High Definition and clear image
High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
If you want to know about that how to install the curtain led display, pls click the picture as follow and then you will get the video↓↓↓↓↓↓
3. Slim body & light weight, Easy maintenance, Long use life
4. High Protection Level
IP67 for whole screen, complete waterproof for various weather conditions.
Screen life time is increased significantly.
5. Fast installation and Easy Maintenance
Both front and rear accessible for maintenance.
Steel frame is canceled during installation.
Specifications
| BOC-2535 | |
| Physical Pitch | 25mm (H),35mm (V) |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 1,120 pixels/m² |
| Unite Size (W*H)(mm) | >=1500*250 |
| Weight(kg/m²) | 10.6 kg/m² |
| Physical Resolution of Unit (H*V) | 60*7 |
| Colors | 281 trillion |
| Processing | 16 bit |
| Contrast Ratio | 2000:1 |
| IP Rating | IP67 |
| Viewing Angle | H:120°,V:60° |
| Panel Material | Alumium |
| Expected Lifetime | 100,000Hrs |
| Operating Temp/Humidity | -30ºC-60ºC/10%-90% |
| Storage Temp/Humidity | -40ºC-85ºC/10%-95% |
| Avg/Max Power Consumption | 115/ 345 /W/m² |
| Servicing | Front / Rear |
| Refresh Rate | >3840 Hz |
| Brightness | >6,500 nits |
Economic and practical
Light and thin design leads to a compact product that saves on shipping and storage costs.

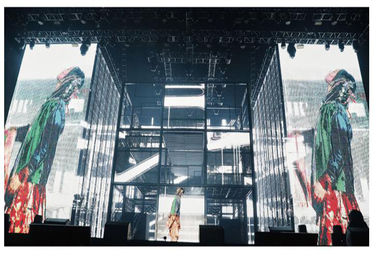

Wide applications
All kinds of building with glass window or wall, for example, Building Constyuction, stage rental, trade show, night club, wall facade, car show, srage backdrop and so on.
Our company
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
FAQ:
1. What is LED?
LED is sanded for light emitting diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are pixel pitch, pixel density, LED QTY and pixel configuration?
Pixel pitch is the distance between neighboring pixels.
Pixel density is the quantity of pixels per square meter.
LED qty is the quantity of LED lamps per square.
Pixel configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED type, module size and module resolution?
LED type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is drive method, driving IC and power supply
Drive method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
