Product Details:
Payment & Shipping Terms:
|
| Processing: | 16bit | Refresh Rate: | >1920Hz |
|---|---|---|---|
| Panel Material: | Aluminum | Brightness: | 5500nits |
| Warranty: | 2 Years | Panel Size: | 1000x1000mm |
| Physical Pitch: | 3.9X7.8mm | Viewing Angle: | 160H/140V |
| Life Span: | 100000 Hours | Pixel Configuration: | SMD1921 |
| High Light: | transparent glass led display,see through led screens |
||

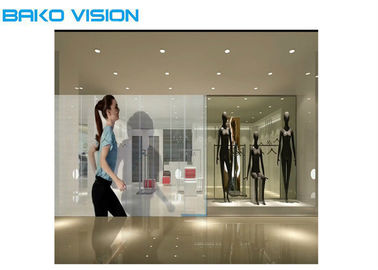

Indoor Slim Ultralight Transparent LED Window Display High Brightness
Key Features
Slim, Lightweight and Quiet
35mm-45mm thickness
Available to attach onto glass wall directly
High Transparency and Concise
60-80% transparency rate among different pitches
Variable brightness options for day and night environment
Hidden cable design looks clean and concise
Special Emitting Angle
Lighting from tube Side emitting
Brightness and color are penetrated via the glass effect
Embedded-In SMD technology, avoid being knocked off
During transportation and installation
Specifications:
| Model | BG-3.9-7.8 | BG-3.75-8 | BG-5-6.67 | BG-5-8 |
| Physical Pitch | 3.9*7.8mm | 3.75*8mm | 5*6.67mm | 5*8mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD3528 | SMD3528 |
| Pixel Density | 32768 pixels/㎡ | 33,250 pixels/㎡ | 30,000 pixels/㎡ | 25,000pixels/㎡ |
|
Module Dimensions (W*H)(mm) |
1000*250/500x250 | 480*320 | 480*320 | 480*320 |
| Panel Dimensions(mm) | 1000*1000 | 960*640 | 960*640 | 960*640 |
| Physical Resolution of Module(W*H) | 256*32/128X32 | 128*40 | 96*48 | 96*40 |
| Physical Resolution of Panel(W*H) | 256*128 | 256*80 | 192*96 | 192*80 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 11kg/sqm | 10.2kg/sqm | 10kg/sqm | 9.5kg/sqm |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1 | 2,000:1 | 2,000:1 | 2,000:1 |
| Average Power Consumption | 207W/panel | 201W/panel | 209W/panel | 203W/panel |
| Max Power Consumption | 690W/panel | 670W/panel | 696W/panel | 670W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >5,500nits | >5,500nits | >5,500nits | >5,500nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Rear | Rear | Rear | Rear |
| IP Rating (Front/Rear) | IP30 | IP30 | IP30 | IP30 |
Application:
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.
Q2. What's your payment term?
A: T/T, Western Union, L/C
Q3. Do you provide samples ? is it free?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 days working days for batch order
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. And we often attend exhibitions around the world every year, so we can visit you if you need at that time.
