Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE,FCC,TUV,RoHS
Model Number: BF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: usd 1000-1250 per square meter
Packaging Details: Wooden Case/Flight Case
Delivery Time: 20 days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 8000m²/month
Detailed Product Description
Physical Pitch: 6/7.8/10/12 Mm Pixel Configuration: 1R 1G 1B
Unit Size (mm): 192*192 Weight (kg/m²): 9
Processing: 16 Bit Colours: 281 Trillion
Contrast Ratio: 2,000:1/4,000:1 Brightness: 2,000/4,000 Nits
Foldable Angle: 360°
High Light:

flexible led curtain display

,

foldable led screen

Convenient Transport and Space Saving Flexible Led Curtain Display with Foldable Modules

Click here for more information 16-BF-Tia.pdf

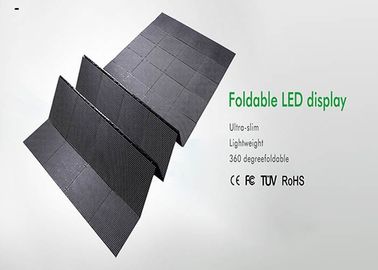

Space / Transportation Saving Flexible Led Curtain Display Foldable Modules 16 Bit is a creative product with very light weight and easy installation. It's widely used in stage events, and it has high resolution and brightness and refresh rate.



Space Saving Flexible Led Curtain Display Features



1.Ultra Thin & Light Weight

2.Conventient Installation & Combination

3.Extraordinary Flexibility

4.Maintenance way: Front service.

5.Application: Super market, Airport, hotel lobby, etc.



Space Saving Flexible Led Curtain Display Parameters

  BF-6 BF-7 BF-10
Physical Pitch 6 mm 7.8 mm 10 mm
Pixel Configuration SMD 3528 SMD 3528/3535 SMD 3528
Pixel Density 27,556 pixels/m² 16,384 pixels/m² 10,000 pixels/m²
Unit Size (W*H)(mm) 192*192 250*250 250*250
Physical Resolution of Unit (H*V) 32*32 32*32 16*16
Weight (kg/m²) <10 <9 <9
Processing 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 2,000:1/4,000:1 2,000:1/4,000:1 2,000:1/4,000:1
Average Power Consumption 150/310 W/m² 90/200 W/m² 110 W/m²
Max Power Consumption 375/775 W/m² 225/500 W/m² 275 W/m²
Brightness 2,000/4,000 nits 1,500/6,000 nits 1,500 nits
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz
Foldable Angle 360° 360° 360°
Max Length of Control Box 6 m 8 m 4 m
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front
IP Rating (Front/Rear) IP 43/54 IP 43/54 IP 43/54
Certification CE,ETL,CCC,FCC,TUV CE,ETL,CCC,FCC,TUV CE,ETL,CCC,FCC,TUV

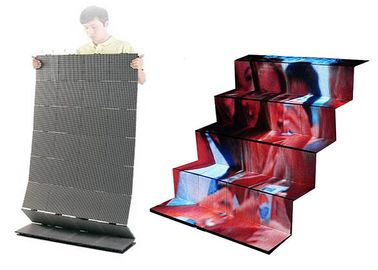

Space Saving Flexible Led Curtain Display Cases

Convenient Transport and Space Saving Flexible Led Curtain Display with Foldable Modules 0
Convenient Transport and Space Saving Flexible Led Curtain Display with Foldable Modules 1

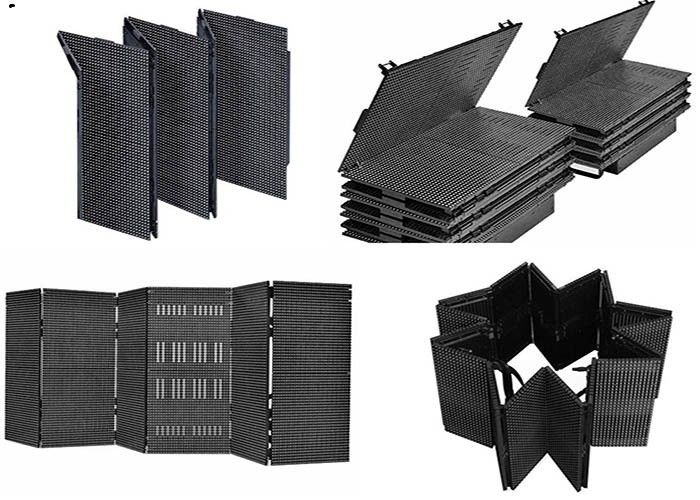

Variable Foldable Module
> 180 or 360 degree foldable
> Storage, transportation cost, space saving
Convenient Transport and Space Saving Flexible Led Curtain Display with Foldable Modules 2

Easy and Fast Installation
> Available for both horizontal and vertical assembling
> Flat and curve options for any customized installation
> Easy connection design allows the fast set up and tear down, save 80% labor cost
Convenient Transport and Space Saving Flexible Led Curtain Display with Foldable Modules 3


Slim, Light Weight and Quiet
> 8.5 mm-15 mm thickness
> <12kg per m²
> Extended Data and Power Box, integrated unit
> Max power cable distance 7m-10m
