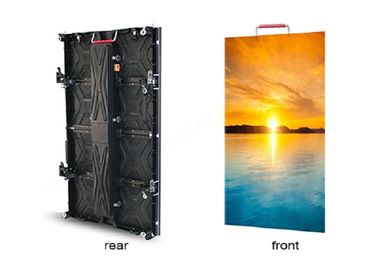

Tools Free Installation Outdoor Rental LED Display High Brightness For Stage

 Tools Free Installation Outdoor Waterproof High Brightness Rental LED Display for Stage



Specification

	BOR-I-3	BOR-I-4	BOR-I-5	BOR-I-6
Physical Pitch	3.91mm	4.81mm	5.95mm	6.25mm
Pixel Configuration	SMD1921	SMD2525	SMD2525	SMD2727
Pixel Density	65,536 pixels/m²	43,264pixels/m²	28,224 pixels/m²	25,600 pixels/m²
Module Dimensions	250×250mm	250×250mm	250×250mm	250×250mm
Panel Dimensions	500×500×80mm 500×1000×80mm	500×500×80mm 500×1000×80mm	500×500×80mm 500×1000×80mm	500×500×80mm 500×1000×80mm
NO. of Modules Per Panel	2×2	2×2	2×2	2×2
Physical Resolution of Module	64×64dots/64×128dots	52×52dots	42×42dots	40×40dots
Physical Resolution of Panel	128×128dots 128×256dots	104×104dots 104×208dots	84×84dots 84×168dots	80×80dots 80×160dots
Panel Material	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Single Cabinet Weight	7kg	7kg	7kg	7kg
Grayscale	16bit	16bit	16bit	16bit
Colors	281trillion	281trillion	281trillion	281trillion
Contrast Ratio	4000:1	4000:1	4000:1	4000:1
Average Power Consumption	75/150W/ panel	75/150W/ panel	75/150W/ panel	75/150W/ panel
Max Power Consumption	225/550 W/ panel	225/550 W/ panel	225/550 W/ panel	225/550 W/ panel
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞6000 nits	＞6000 nits	＞6000 nits	＞6000 nits
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
Servicing	Front/Rear	Front/Rear	Front/Rear	Front/Rear
IP Rating(Front/Rear)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54







































































Features

1. Slim, lightweight. Made with die-casting aluminum, only 7kg per cabinet, 80mm thickness. Die-casting aluminum also better for heat dissipation and no fan design very quiet.





























































2. Fast installation. Fast lock design guarantees a quick installation without tools.































































3. Easy maintenance. Magnetic modules guarantees a easy maintenance.





























































4. Wide viewing angle, high brightness and high contrast ratio. In addition, brightness can be adjusted for outdoor day and night.





























































5. Outdoor waterproof with IP65









































































































6. Dual signal backup port and UI LCD monitoring.





































































FAQ

1. Are you trading company or manufacturer?
We are a professional led screen manufacturer.



2. How to payment?

We accept the L/C, T/T, Western Union.



​3. What is the packing method?

We usually use plywood case or flight case.



​4. How about the delivery time?

We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.



​5. Do you provide samples ? Is it free or extra?

We provide samples if you need, but the customers have to pay the sample cost and the courier cost.



​6. How do you ship the goods?

We usually ship by DHL, UPS, FedEx or TNT. In addition, Airline and sea shipping also optional.
