Product Details:
Payment & Shipping Terms:
|
| Weight: | 8.2 Kg/m² | Processing: | 16 Bit |
|---|---|---|---|
| Contrast Ratio: | 4,000:1 | Brightness: | ＞1,000 Nits |
| Refresh Rate: | ＞1,920 | Servicing: | Front |
| IP Rating: | IP 40 | ||
| High Light: | flexible led curtain display,foldable led screen |
||

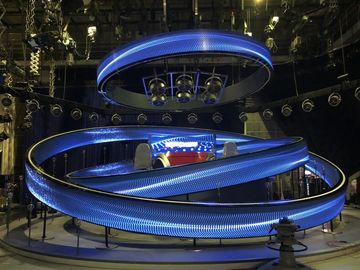

Creative Shape Advertising, Flexible LED Display with High Flexibility, Super thin and Light, No Cabinet
What do you want me to be this time?
You can see how soft I am:
Parameter
| BS-2 | |
| Physical Pitch | 2.5 mm |
| Pixel Configuration | SMD 1515 |
| Pixel Density | 250,000 pixels/m² |
| Module Dimensions (W× H)(mm) | 240 × 120 |
| Panel Dimensions (mm) | customized |
| Physical Resolution of Module (W× H) | 120 × 60 |
| Weight | 8.2 kg/m² |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 9 w |
| Max Power Consumption | 12 w |
| Brightness | >1,000nits |
| Refresh Rate | 1,920 Hz |
| Driving Method | 1/40 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front |
| IP Rating (Front/Rear) | IP 40 |
| Installation | Hang |
| Certification | CE, FCC, RoHS |
| Operating Temp/Humidity | -20℃- 60℃ / 10% - 90% |
| Storage Temp/Humidity | -40℃-80℃ / 10% - 90% |
How about my features?
1. Soft Ribbon Rubber
Soft PCB and rubber material
Magnetic connection for easy maintenance
2.Creative and Customized Forms
For any convex, concave or twisted installations
Customized pixel pitches available for variable installations
3.Slim and Lightweight and Quiet
5mm thickness, space efficiency
0.18kg per module, shipping cost and installation cost saving
Fanless design
Services
1) We can offer customization service for customized products and can provide onsite installation and testing service.
2) We provide 2 years warranty and free repair service for our products sold.
3) We also provide free training to customers' engineer.
4) Regarding the production of products, from raw materials to every process, we have strict production and testing process to ensure that our
products under the quality inspection system standards.
5) At the same time, before leaving the factory,we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the
high quality of the product.
Tips
1) Payment: We accept the L/C, T/T, Western Union.
2) Shipment: We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping
company and shipping details.
3) Package: We usually pack the product in a wooden box or flight case.
