| Cabinet Material: | Steel/Aluminum | Weight(kg/sqm): | 70/50 |
|---|---|---|---|
| Brightness: | >6,500nits | IP Rating: | IP65/IP54 |
| High Light: | stadium perimeter led display,led perimeter advertising boards |
||

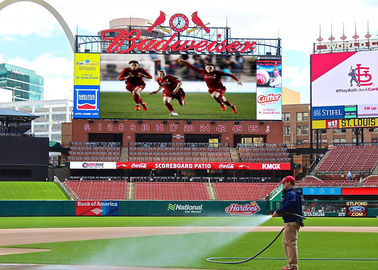

IP65/IP54 Perimeter Led Screen , P10 SMD3535 Football Stadium Advertising Boards
| BG-8 | BSP-10 | BSP-16 | |
| Physical Pitch | 8mm | 10mm | 16mm |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density | 15,625 pixels/㎡ | 10,000 pixels/㎡ | 3,906 pixels/㎡ |
| Module Dimensions (W*H)(mm) | 256*256 | 320*320 | 256*128 |
| Panel Dimensions(mm) | 1280*768*187 | 1280*960*187 | 1280*896*187 |
| Physical Resolution of Module(W*H) | 32*32 | 32*32 | 16*8 |
| Physical Resolution of Panel(W*H) | 160*96 | 128*96 | 160*56 |
| Panel Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
| Weight(kg/sqm) | 70/50 | 70/50 | 70/50 |
| Processing | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1 | 2,000:1 | 2,000:1 |
| Average Power Consumption | 360W/panel | 360W/panel | 360W/panel |
| Max Power Consumption | 900W/panel | 900W/panel | 900W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >6,500nits | >6,500nits | >6,500nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Product Features
Outdoor Rated
IP65 rating for front and rear
Suitable brightness adjustable for outdoor day and night
5500-8000nits brightness
Superior Electrical Features
Vivid and brilliant colors
16 Bit signal processing,2500-4000Hz refresh rate
Built-in data and power redundancy for ultimate reliability
Fast Instalaltion and Easy Maintenance
Fast lock system sedign guarantees a quick & easy installation
Front and rear access
Fast access to modules,cables,power and data boxes
Versatile Dual Purpose Design
Removing the ground adjustable btacket and protection foam bumper can be transformed to be a square solid screen
Available for truss hanging,ground sracking,wall mounting
Q1:Are you factory or a trade company?
A1:We are a factory owing professional R & D department and production lines with 14 years of experience in led display.
Q2:Why I should choose your company ?
A2:We have been focusing on the development of led svreen and have a good reputaion in the market.We strictly follow up the requirements of customers,and are committed to achieve a win-win situation with customers.Whatever the products stability or service we will do better and better.
Q3:How can I get technical support?
We treasure every customer that shake hands with us . We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide .
Packaing and shipping
Service
Baco Vision will provide pre-sales,after-sales and training services to all customers.
Pre-sales service we will provide the correct solution according to customers' needs and using environment.Customers can also get a better understanding of BAKO products, including product specifications, product performance, operating environment and supporting facilities, and assist customers to choose matching solutions, such as led display type, control system, power configuration, signal cable, etc.
After-sales service barco offers a two-year warranty on its products.After a two-year warranty, BAKO collects maintenance fees for raw materials.Our engineers and sales staff are always ready to answer your questions and solve them.
