| LED Configuration: | 1R1G1B | Cabinet Weight: | 8kg(13kg) |
|---|---|---|---|
| Cabinet Material: | Die Casting Aluminum | Driving Method: | 1/22 Scan |
| Data Refresh Rate: | >1500Hz | Gray Scale: | 16bit |
| High Light: | led video wall display,indoor led advertising scree |
||
Indoor fixed LED Display Also Used in Rental Screen P2.98 Ultra Thin Full Color Wireless 4G
Function and Technology Character:
The adjustable high brightness can meet the requirements of different environment.
There is no mosaic on it thanks to the excellent flatness and nice uniformity of light-emitting.
The viewing angles of horizontal line and vertical line have reached 140 degree, brings with the
unchangeable video effect among this range.
The high density makes the vivid video performance available.
Designed with good heat dissipation capability, protect the display from outside environment.
Quick lock system assuring fast rigging.
Approval of Front service and rear service. It’s all up to you about the maintenance way.
Applications:

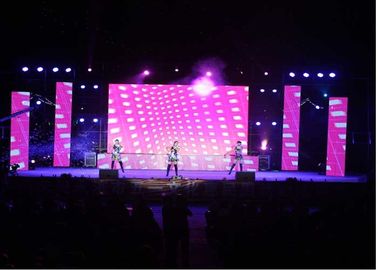

With various real-time signal sources and the SMD encapsulation technology, It could be used in indoor environment, such as enterprise hall,showing room, cinema, stage.
| Pixel Pitch | 2.98mm |
| Pixel Density | 112896 pixels/m2 |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500*500mm 500*1000mm |
| Cabinet Resolution | 168*168px 168*336px |
| Cabinet Weight | 8kg(13kg) |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/22 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 320w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity (operating/storage) |
10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥50000hrs |
| Pixel Failure | <0.0003 |
