Small Pitch Front Service LED Display Easy Installation Saving Space For Indoor Fixed LED Video Wall
Front service and disassembly:
Power supply, hub card, receive card and module all front assemble or disassemble. A repair aisle reserving is unnecessary. Built-in installation method can help to save space.
Also front maintenance is available.
Handle internally installed & Module magnetically mounted:
2pcs handles and 3pcs magnetic sheets within the cabinet. Easy to fix the modules.
High gray scale, ultra HD:
Cabinets configure brand IC, gray scale reach to 16bit, data refresh rate reach 3840Hz, the display screen is soft, delicate and realistic.
Lightweight and slim thickness:
Cabinet lightweight design, using die-cast aluminum designed and manufactured. One single cabinet only 6kg weight and 60mm thickness.
High precision quick lock assemble and disassemble:
The sides of the cabinet can be quick lock and quick disassemble, convenient operation. Save time as well as manpower.Apply users a better sense of operation experience, only need 10 seconds to install a cabinet.
16:9 HD excellent fidelity:
Easy to implement HD/4K/8K image seamless splicing. Pixel to pixel display mode matching with 16:9 video source. Image segmentation can be carried out, achieving the input source resolution equal to LED display screen resolution, restoring images to the maximum extent possible, meanwhile avoiding distortion and blurring caused by zooming in or out.
Specifications:
| Model | IS-1.8 |
| Pixel Pitch | 1.875mm |
| Pixel Density | 284866 px/m2 |
| LED Type | SMD1010 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 600*337.5mm |
| Module Dimension | 150*168.75mm |
| Cabinet Weight | 6kg |
| Cabinet Material | die-casting |
| Ingress Protection | IP43 |
| Brightness | >800nits |

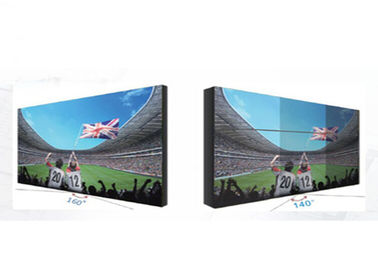

| Viewing Angle(H/V) | 160°/140° |
| Power Consumption(avg.) | 220w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C -40~60°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |
Our service:
1. OEM/ODM manufacturing
2. Sample order manufacturing is available
3. Stocking spare parts is available
4. Online payment & Online transact
5. Online operation for Online after sale
6. Onsite installation if needed.
Trade Terms:
1. Package: Anti-shaking wooden package, Air flight case
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: within 20-25 working days
