Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Pixel Density: | 40,000 Pixel/m² |
|---|---|---|---|
| LED Type: | SMD1921 | Viewing Angle(H/V): | 140°/140° |
| Brightness: | 6500nits | Driving Method: | 1/9 Scan |
| Power Consumption(avg.): | 250w/m² | ||
| High Light: | outdoor led billboard,outdoor electronic signage boards |
||

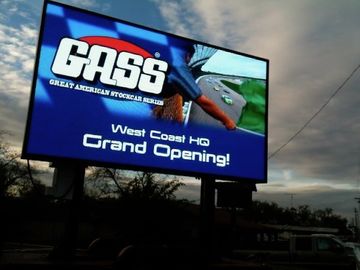

6500Nits P5 Outdoor Billboard LED Display with Nationstar SMD1921 For ads
P5 Billboard Led Display Description:
Revolutionary LED Design with Unmatched Customer Service - Exclusively From BAKOVISION
Customer service isn't just something we offer, it is who we are. We're with you every step of the way - from permitting to installation to training and service - to ensure your success.
P5 Billboard Led Display Advantage:
1. Reliable quality, advanced and mature technology,compliant with industrial standards and technology developing trend.
2. Good heat emission, water proof and stable performance.
3. Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal.
4. High resolution and definition of screen image, clear and non-flash screen image.
5. Supports video and radio frequency input, special structure can be freely assembled.
P5 Billboard Led Display application
Widely used in stadium, bank, restaurant, station, shopping center, government, schools, entertainment, and enterprise.
P5 Billboard Led Display Specs
| BOF-B-5 | |
| Physical Pitch | 5 mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 40,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 64 × 32 |
| Physical Resolution of Panel (W × H) | 192 × 192 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 36 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃- 50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method |
1/8 Scan |
